I'm trying to generate an array of circles but it looks like I am missing something. The data I have come up with won't plot.

Thank you in advance for any help.bolt array.sm (13.33 KiB) downloaded 1093 time(s).

In case of multiple traces, plot expects a system of data as input.
It is sufficient to convert the "boltplot" big matrix into a system (containing one matrix for each circle).

Command mat2sys()1 will do the work.

See attachment
Bye

bolt array.sm (17.74 KiB) downloaded 1064 time(s).

Wrote

I'm trying to generate an array of circles

From there, you can manage all sorts of:
number of bolts in any radii.
Cheers ... Jean

Page11 Bolt Circle.sm (13.6 KiB) downloaded 1292 time(s).

Wrote

From there, you can manage all sorts of:
number of bolts in any radii.

This one is Fourier style for elliptical bolt circle.

Page13 Bolt Cicle Fourier.sm (12.03 KiB) downloaded 1115 time(s).

fedeghi has the correct answer.
multiple plots needs to be in sys(), not matrix.
I don't know the purpose of replies after that, as usual..

Regards

... as usual for larger prospective insight.

Page13 Bolt Cicle Fourier Otherwise.sm (20.87 KiB) downloaded 1205 time(s).

or you can just keep within the question.
and don't throw every filename match to topics.

Wrote

I'm trying to generate an array of circles

... more concentric/shifted
bolt array ... visit TEMA standard.

Circle Map.sm (12.35 KiB) downloaded 1066 time(s).

Thanks everyone. Really appreciate your help.

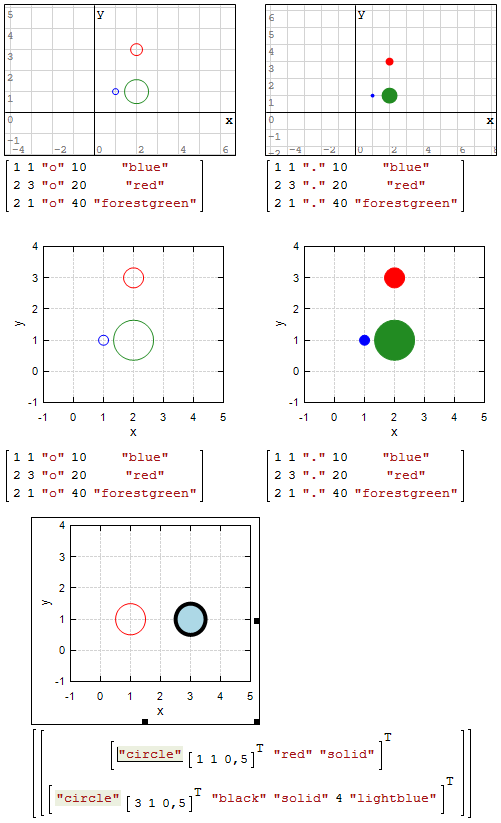

You also could use circular symbols (top row: built-in plot region, 2nd row: XY-Plot region.
However, these won't scale when zooming the plot.
In XY-Plot, you also could use geometric objects, which scale as expected.


bolt array_Kr.sm (11.41 KiB) downloaded 1035 time(s).
