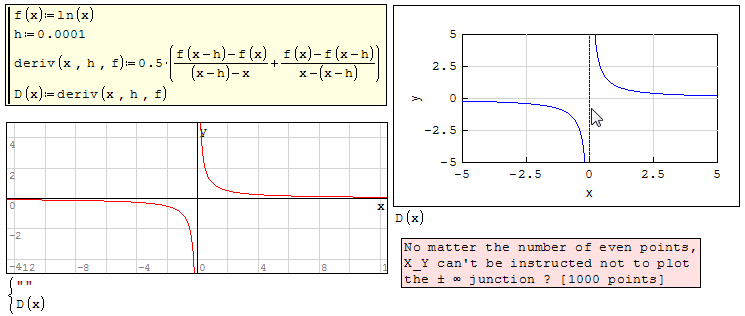

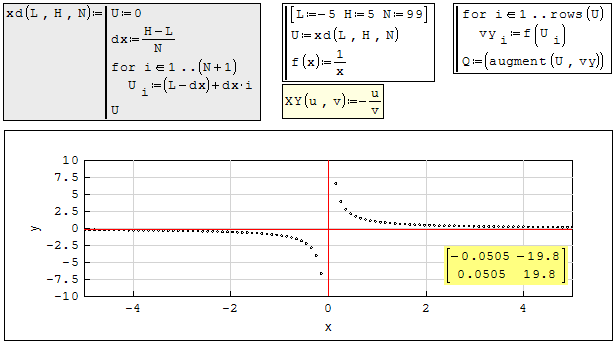

The image speaks by itself. A bit of wise code is missing.

X_Y Hope for clean Plot.sm (8 KiB) downloaded 57 time(s).

X_Y%20Hope%20for%20clean%20Plot.sm (20 KiB) downloaded 59 time(s).

Thanks Martin,
"explicit function" is not delivered with stable 6179.



X_Y Hope for clean Plot.sm (13 KiB) downloaded 52 time(s).

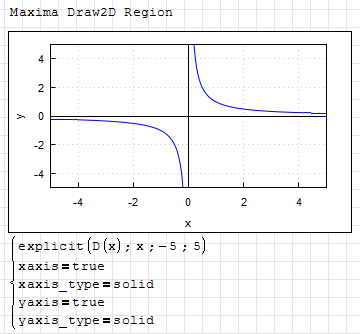

explicit() is a Maxima function for plotting of explicit functions.

Maxima is working best with the current development version of SMath. I configured a portable distribution based on the latest version including the current version of the Maxima Plugin. See my signature for a download link (goes via wiki).

To use Maxima, follow the instructions on the plugin forum page.

There is a 6179-based distribution on my SMath Support page with Maxima included.
The above example should work with it, just ignore the complaints about program versions.
