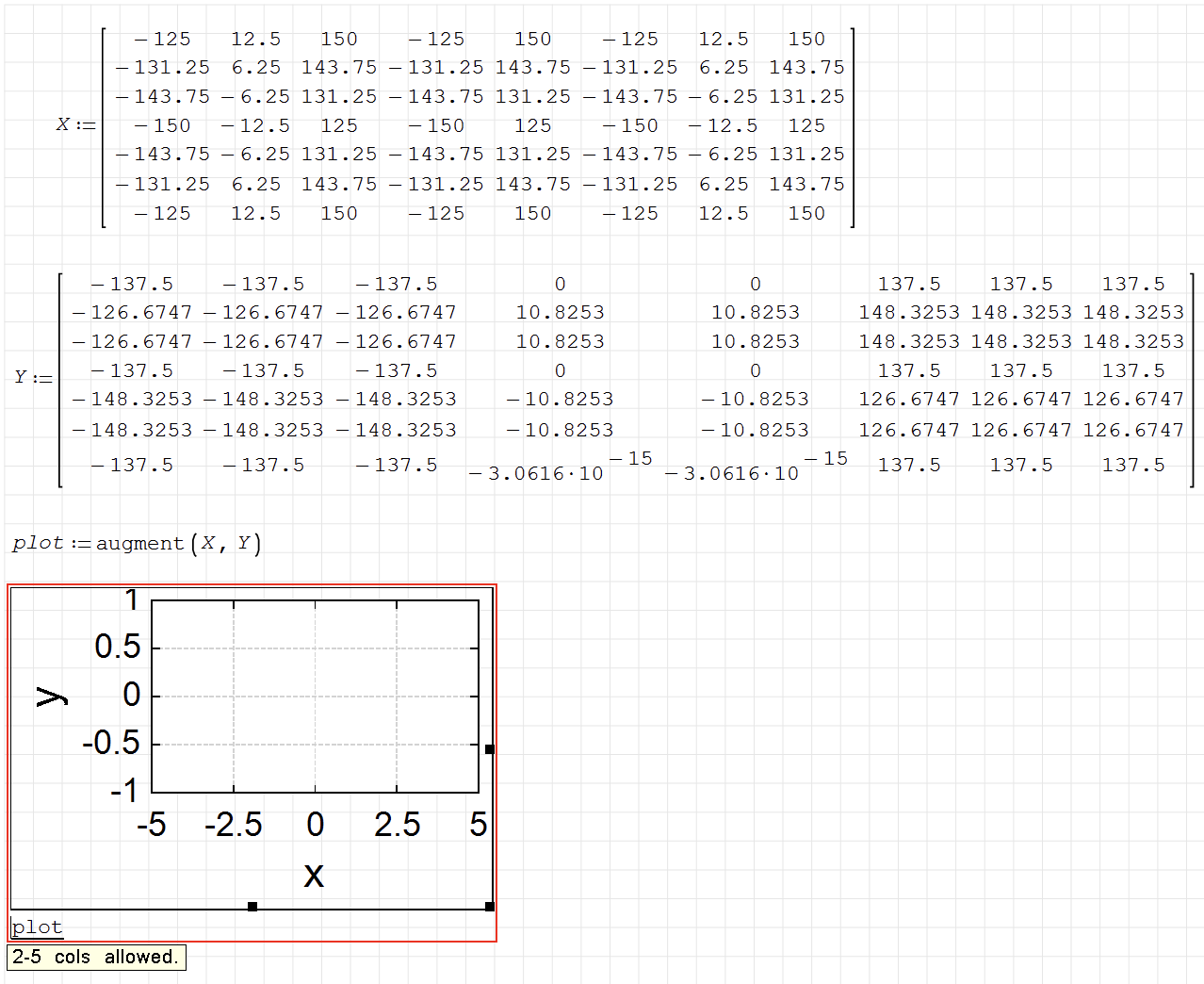

I want to plot multiple polygons in the 2D plot simultaneously. However, I'm getting an error in the plot: 2-5 columns allowed. See the attached file




2-5 cols allowed.sm (13 KiB) downloaded 16 time(s).

Is there a way to do this in smath? I was able to plot a simultaneous unlimited number of polygons in Mathcad Prime without any problems, though. Thanks.

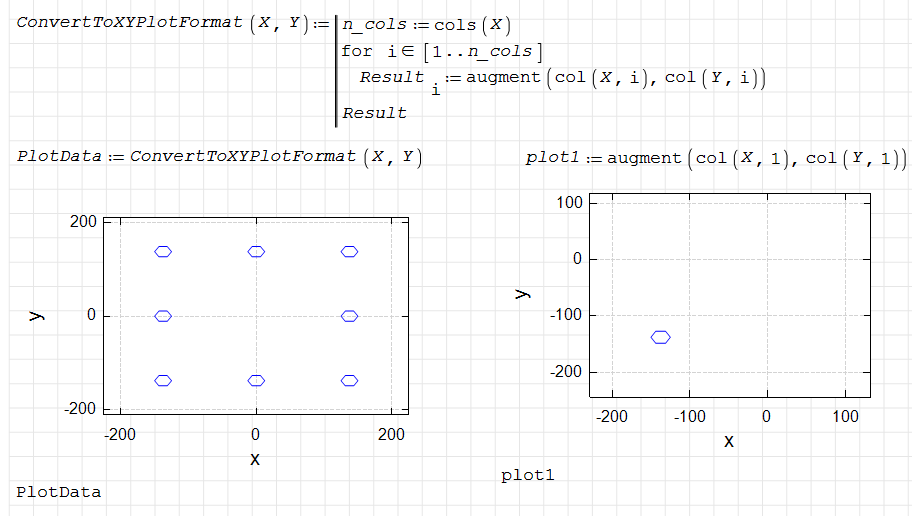

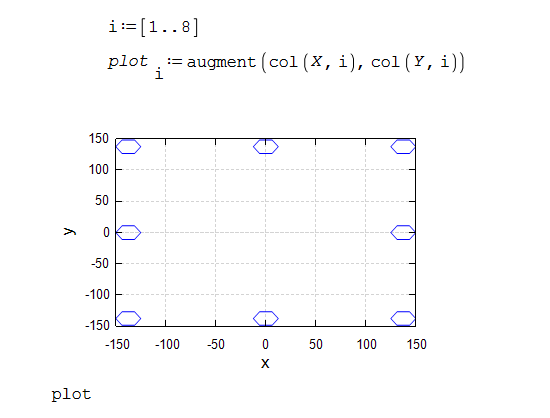

I think this should have been in the Questions section. However,



2-5 cols allowed_b.sm (13 KiB) downloaded 14 time(s).

Thanks. 😋

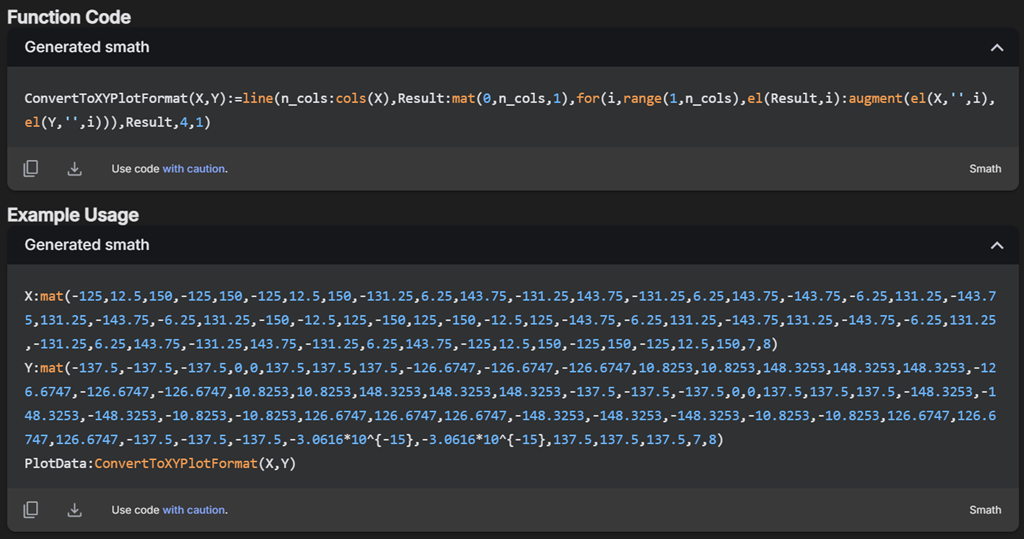

Now you can ask the AI, but it is still weak and can make mistakes.



Manual modification is required.
