hello again.

How can I get a graph from a variable? Example in graph 2 where nothing appears.

the content of the variable is pasted directly into graph 1 and
there it is working

I generate the matrices to draw a series of rectangles
but I don't know in advance how many rectangles will be drawn
that's why I require to use a variable that contains a system of several matrices

is there another solution?

stack-of-rec.sm (29.67 KiB) downloaded 274 time(s).

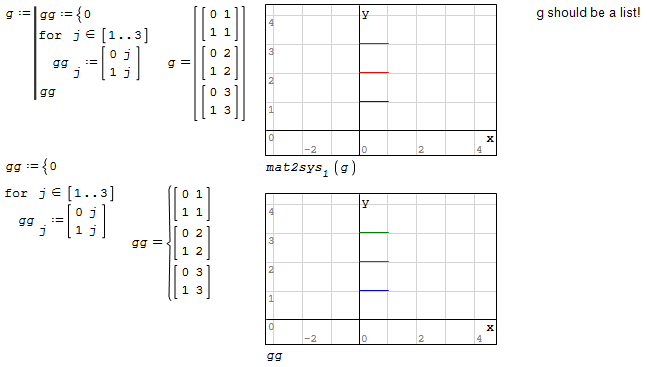

There might be other issues, but one of them could be the bug demonstrated here. Normally, no element assignment should alter the object type from list to matrix as it seems to happen in the line block definition. I think this is another regression, such stuff used to work in older versions (here 7251).

The original desparate workaround with str2num tries to handle the bug. Normally you should be able to reliably initialize a variable using any object of appropriate type.


Lists.sm (7.5 KiB) downloaded 291 time(s).

Wrote

is there another solution?

Transit the 'gg' matrices via file, plot.

stack-of-rec.sm (31.93 KiB) downloaded 271 time(s).

thank you very much Martin Kraska and also to you Jean Giraud

both options work well
I attach the file with Martin's suggestion, which I
It seems what I was looking for, and I take note of the solution
Jean who as always is very helpful and educational
since you learn a lot from these examples.

Thank you!

stack-of-rec.sm (23.12 KiB) downloaded 293 time(s).

Much simpler Amigo ...
Isolate 'gg' gg:= gg ...or rectangles:= gg

Wrote

Much simpler Amigo ...
Isolate 'gg' gg:= gg ...or rectangles:= gg

Hahaha yes! this work too.

If you want unicolor plot and rotation,
you may have to reconsider your construction.

Utilities XY [Draw Truss].sm (22.85 KiB) downloaded 242 time(s).
stack-of-rec.sm (37.11 KiB) downloaded 282 time(s).

Your H beam, you can have it SVG style.

Spline De Casteljau SVG Hbeam.sm (41.36 KiB) downloaded 313 time(s).

Wrote

There might be other issues, but one of them could be the bug demonstrated here. Normally, no element assignment should alter the object type from list to matrix as it seems to happen in the line block definition. I think this is another regression, such stuff used to work in older versions (here 7251).

The original desparate workaround with str2num tries to handle the bug. Normally you should be able to reliably initialize a variable using any object of appropriate type.

The issue demonstrated in the above post nails down to unexpected handling of single element lists used to initialize the data under numeric optimization.



lists2.sm (6.44 KiB) downloaded 277 time(s).
