Application can be easily extended based on your needs. Built-in Extensions Manager tool allows to get access to hundreds official and third-party resources of the following types: usage examples, plug-ins, SMath Viewer based applications, snippets, interface translations, interactive books, handbooks and tutorials.

It provides numerous computing features and rich user interface translated into about 40 different languages. Application also contains integrated mathematical reference book.

List of changes(between 0.99.6953 and 0.99.7005 versions)

Improvements

• Use by default button added to Page Setup dialog;
• User is able to specify default pages orientation using Page Setup dialog;
• Added ability to delete empty worksheet space together with selected Regions using Shift+Del, Shift+Backspace or Shift+Ctrl+X;
• Added support for high DPI environment (application is not blurry anymore);
• Part of the equation which causes an error is highlighted now;
• It is now allowed to move regions within Header/Footer on all pages (previously it was possible on the first page only);
• Pause on error feature implemented (available in Calculation menu);
• Displaying of disabled regions improved;
• Disabled regions displayed on the vertical scrollbar now;
• Added possibility to display multiple pages side by side if there is enough horizontal space on the screen (in order to control this feature Multiple Pages menu item added to the View menu);
• Added ability to specify behavior on calculation error occurs: Continue (default), Pause or Interrupt;
• Added ability to change math variable by pasting text from Clipboard;
• Added ability to clone regions by Ctrl+Dragging by mouse inside Header/Footer;
• Single instance of application is used for all files to open from shell now;
• Paper selected in Page Setup dialog can be set as default now;
• Insert Function and Insert Unit dialogs extended to display count of plug-ins and functions/units;
• Search functionality improved (current found Region is shown, Shift+F3 allows to show previous found Region, collapsed Areas automatically expands to show next found Region when required);
• The following symbols added to Greek symbols: script theta and phi (technical);
• Added ability to select multiple Regions by pressing Shift + Left/Right/Up/Down keyboard buttons;
• Double click on Debugging data panel items will scroll to the item definition now (context menu also extended with Go to definition item).

Corrections

• Legacy scaling mechanizm replaced with a modern one (in order to reuse scaling approach introduced for Android, iOS, UWP);
• Adding of Regions before collapsed Area fixed;
• Graphical glitches happens on switching Pages View mode with editable Header or Footer fixed;
• Extra space on the bottom of the Worksheet in Pages view mode standardized (not depend on the specified Page Model anymore);
• All usages of smath.info domain name replaced with smath.com;
• Support e-mail corrected in languages translations;
• Refactoring;
• Support for evaluation plug-ins improved;
• Moving regions between pages (with incorrect vertical position after region drop) fixed;
• Rendering of the worksheet improved for small zoom values;
• Incorrect cursor position sometimes happened after paste (depending on localization settings) fixed;
• SS-3572: Possibility to interrupt calculation manually improved;
• Insert Function dialog performance significantly increased;
• SS-4583: Worksheet rendering issue fixed;
• Copy/paste works in Header/Footer now;
• Changes in Header/Footer cannot initiate Worksheet recalculation anymore;
• File not found error appeared sometime on attempt to open interactive Reference book fixed;
• SS-3571: Selection of Area title on single mouse click fixed;
• Tooltips with shortcuts restored on the Greek side panels (will be shown on hover by mouse);
• Issue when part of the content selected on Region focus fixed;
• Support for the Worksheet splitted view improved;
• Functionality to show focused Region over all others on the page restored.

Miscellaneous

• Dynamic Assistance updated to support high DPI;
• Support for different Header/Footer for specific Worksheet page fixed;
• Invalidation errors fixed on regions/cursor moving;
• Added ability to click on and focus regions displayed over the other ones (usually it is some small region located in the bounds of the another big one, like a label moved over the plot);
• Worksheet rendering speed improved;
• Support for high DPI environment improved;
• SS-4581: Rendering of the systems with large amount of items fixed;
• Interface translations updated;
• Performance of loading large Worksheets improved (up to x3);
• Number of pages value dynamically updated in application status bar during large Worksheet opening (convenient to understand current progress);
• Step in button disabled on Worksheet open/save operations now;
• Overall application stability increased;
• Loading performance improved (in case of many third-party plug-ins installed);
• Error messages improved;
• General improvements related to Multiple Pages functionality;
• Error handling improved during opening Worksheets.

Download

SMathStudioDesktop.0_99_7005.Mono.tar.gz (1 MiB) downloaded 1433 time(s).

SMathStudioDesktop.0_99_7005.Setup.msi (2 MiB) downloaded 13551 time(s).

• Desktop (Windows):
  Framework: .NET Framework 2.0 or higher

• Desktop (Linux):
  Framework: Mono 2.0 (libmono-winforms-2.0-cil package) or higher

• [ARA] Arabic / العربي

• [BEL] Belarusian / Беларуская

• [BUL] Bulgarian / Български

• [CAT] Catalan / Català

• [CHS] Chinese (Simplified) / 简体中文

• [CHT] Chinese (Traditional) / 簡體中文

• [CPP] Portuguese (Brazil) / Brazil (Português)

• [CZE] Czech / Čeština

• [DAN] Danish / Dansk

• [DUT] Dutch / Nederlands

• [ENG] English / English

• [FAS] Persian / فارسی

• [FIN] Finnish / Suomi

• [FRE] French / Français

• [GER] German / Deutsch

• [GRE] Greek / Ελληνικά

• [HEB] Hebrew / עברית

• [HUN] Hungarian / Magyar

• [IND] Indonesian / Bahasa Indonesia

• [ITA] Italian / Italiano

• [JPN] Japanese / 日本語

• [KOR] Korean / 한국어

• [LAV] Latvian / Latviešu

• [LTH] Lithuanian / Lietuvių

• [NOR] Norwegian / Norsk

• [POL] Polish / Polski

• [POR] Portuguese / Português

• [RON] Romanian / Română

• [RUS] Russian / Русский

• [SCC] Serbian (Latin) / Srpski

• [SCR] Croatian / Hrvatski

• [SLK] Slovak / Slovenčina

• [SPA] Spanish / Español

• [SRP] Serbian (Cyrillic) / Српски

• [SWE] Swedish / Svenska

• [TUR] Turkish / Türkçe

• [UKR] Ukrainian / Українська

SMath Studio tutorial by Bernard Liengme.

• SMathPrimer.pdf (Date: 11.11.2011. File size: 2.06MB) - to open in Adobe Acrobat Reader

Introduction of the use of SMath Studio by Gilberto E. Urroz, Ph.D., P.E.

• SMathStudio.0_85.Article.Eng.pdf (Date: 23.09.2009. File size: 828.96KB) - to open in Adobe Acrobat Reader

• SMathStudio.0_85.IOFiles.Article.Eng.pdf (Date: 27.09.2009. File size: 453.24KB) - to open in Adobe Acrobat Reader

• SMathStudio.0_85.NumericFunctions.Article.Eng.pdf (Date: 18.10.2009. File size: 622.45KB) - to open in Adobe Acrobat Reader

• SMathStudio.0_85.Programming.Article.Eng.pdf (Date: 18.10.2009. File size: 411.74KB) - to open in Adobe Acrobat Reader

SMath Studio icons () of all available sizes (16x16, 24x24, 32x32, 48x48, 64x64, 96x96, 128x128, 256x256) in PNG format.

• SMathStudio.Icons.zip (Date: 12.04.2010. Size: 63.74KB)

I appreciate all your hard work on this software; however, please turn off the popup trying to install the 7005 version every time I open my 6884 version. There are too many plugins that I need that no longer work with the 7005 version.
Thanks again for all your hard work.
Reg curry

Wrote

please turn off the popup trying to install the 7005 version every time I open my 6884 version

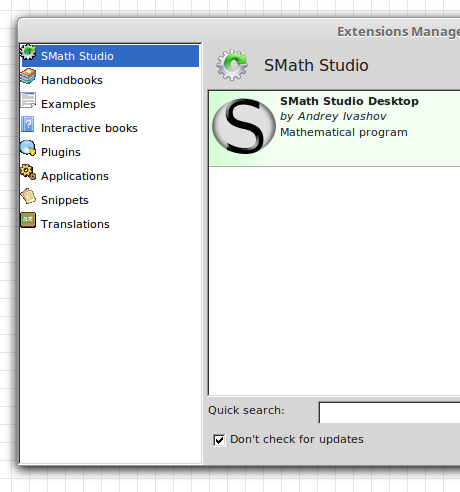

Go to: Tools > Plugins... > SMath Studio

then enable the option "Don't check for updates"

I did. However, now I cannot even use the older version with maple or XY plots. This has totally ruined my workflow. Let me know when this is fixed and I will return to Smath.

Also, there is not Tools>Plugins>SMath Studio

There is only Tools>Plugins>Online gallery

Thanks for adding in the maple and XY plot plugins.

Wrote

I did. However, now I cannot even use the older version with maple or XY plots. This has totally ruined my workflow. Let me know when this is fixed and I will return to Smath.

I generally recommend to not upgrade the installed version until you verified that new versions are functional to the level you need.

To test new versions, use the linux version (yes, it runs under Windows and yes it is significantly smaller), unpack it to some directory and add a file named portable.version to that directory. Then you have a sandbox which is totally independent of the "installed" SMath version.

Wrote

Also, there is not Tools>Plugins>SMath Studio

There is only Tools>Plugins>Online gallery

Is the first item in the left panel

Wrote

I did. However, now I cannot even use the older version with maple or XY plots.

Once you reinstalled the old program version go in the Extensions Manager (Tools > Plugins) and remove the plugins you have previously updated in the newer version (select each plugin that has a red backkground or didn't work as expected, then click on the trash bin), finally switch the top right button from "Local Storage" to "Online Gallery" and reinstall the extensions you need.

Добрый день, уважаемые эксперты SMath.

Спасибо за вашу работу и за новое обновление SMath Studio.
Я обратил внимание на следующую особенность в новоей стабильной версии Smath 0.9.0075.xxx, когда пользователь удаляет строки в документе с помощью клавиши 'Delete‘.
Так не виден маркер удалемых строк и вообще строка статична. Она не двигается вверх, пока жмешь кнопку 'Delete‘. И только потом после операции удаления нескольких строк весь документ сдвигается вверх. А во сколько строк удаляется в процессе удержания кнопки 'Delete‘ - неизвестно . Если риск удалить и сам фрагмент текста или формулы, если маркер находится над ними и пользователь удерживает кнопку 'Delete‘.

С уважением Андрей

p.s. могу выложить видео, но не знаю как на форуме это видео выложить

Wrote

I generally recommend to not upgrade the installed version until you verified that new versions are functional to the level you need.

To test new versions, use the linux version (yes, it runs under Windows and yes it is significantly smaller), unpack it to some directory and add a file named portable.version to that directory. Then you have a sandbox which is totally independent of the "installed" SMath version.

Martin- Thank you for this!

How do you recommend to handle the different plugin versions? If there is a version update to the plugin, is it safe to assume that the updated plugins are 100% backward compatible?

Thanks

Dennis

Wrote

Wrote

I generally recommend to not upgrade the installed version until you verified that new versions are functional to the level you need.

To test new versions, use the linux version (yes, it runs under Windows and yes it is significantly smaller), unpack it to some directory and add a file named portable.version to that directory. Then you have a sandbox which is totally independent of the "installed" SMath version.

Martin- Thank you for this!

How do you recommend to handle the different plugin versions? If there is a version update to the plugin, is it safe to assume that the updated plugins are 100% backward compatible?

Thanks

Dennis

If you are working with different portable versions, then you have separate directories for each of them. Each version has it's own extensions subdirectory, which you need to fill using the extension manager. Then the extension manager should offer you the plugin versions appropriate for the particular SMath version. Usually this works reliably. Never just copy the extension subdir from some other portable version.

German handbook updated.
Available via Extension manager or website.

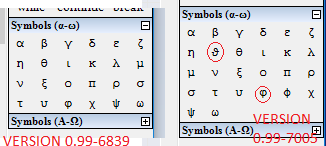

Andrey, did you deliberately change shortcuts for greek letters?

f Ctrl-G now produces the closed phi sign (\phi in LateX). In previous versions it used to produce the open version of the sign (\varphi)

I'd vote for the old version.

they got flipped-flopped- i did not notice until you pointed it out.

i remembered the mention that it was added the 2 'special' greek chars, but I could not figure what it meant until i looked at the symbols panel. if you hover over the symbol, it gives you the shortcut in the new version.

curiously, in 6839, the hotkey work, i do not remember when they got added.

Wrote

Andrey, did you deliberately change shortcuts for greek letters?

f Ctrl-G now produces the closed phi sign (\phi in LateX). In previous versions it used to produce the open version of the sign (\varphi)

I'd vote for the old version.

Looks like a bug. Will fix it. Thank you!
