SpiceSharp (Spice#) - electronic circuit simulator

---

Based on SpiceSharpParser (.NET library that allows to parse SPICE netlists and to simulate them using SpiceSharp library).

This plugin requires .Net Framework 4.7.2 to be installed for it to work.

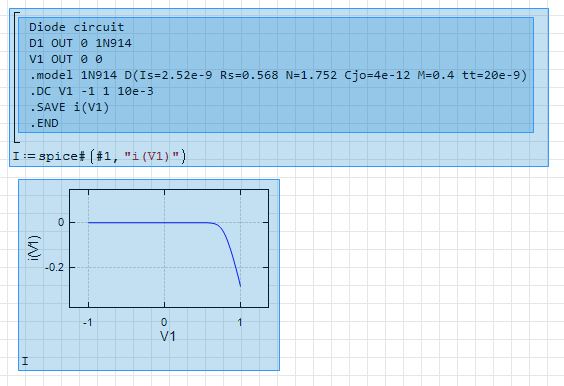

I managed to run the first test example on my PC. The plugin is not available on the server yet.



Links:

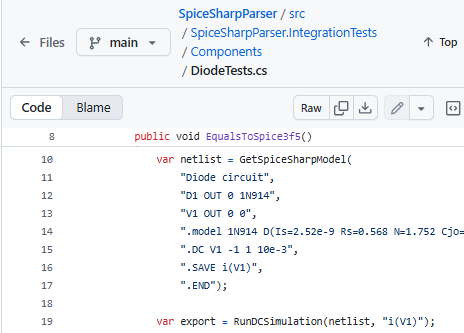

1. SpiceSharpParser
2. SpiceSharp Home Page

For experts only.

spice#.sm (5 KiB) downloaded 64 time(s).

Plugins folder: C:\Users\User\AppData\Roaming\SMath\extensions\plugins

SpiceSharp-0.1.9092.9246.zip (10 MiB) downloaded 64 time(s).

Hi. A preview for exploring this powerful plugin.

spice# and MNA.sm (577 KiB) downloaded 65 time(s).
spice# and MNA.pdf (1 MiB) downloaded 79 time(s).

Best regards.
Alvaro.

I haven't even tried these features myself yet. Support for all types of analysis hasn't been tested. There's still a lot of work to do. Maybe I'll do a direct insertion of values ​​into the circuit description. I wanted to try making a circuit with an amplitude detector. The authors have recently added the ability to specify an amplitude-modulated signal. They have a shell (GUI) in which you can also test circuits.

Hi Viacheslav. As far as I could see, the plugin you created works very well, it just has some very minor details, like not recognizing either "u" or "μ" for micro. By the way, handling that is a configurable option in ltspice. So you shouldn't be the first one to have problems with that.

As for the analyses that spice# has, it's just a matter of discovering them, since the documentation they have is very little, and for example, I don't know what convention they followed to enumerate the nodes of the controlled sources. I took the one they use in the Qucs simulator, but there is no standard for that.

I saw the GUI for windows that you mention on github, except that they didn't compile it... or at least I didn't find it, only the source code.

Best regards.
Alvaro.

Similar project. I assembled it, but I haven't tried it in work.

NextGenSpice_20241125.zip (321 KiB) downloaded 59 time(s).

Links:

1. NextGenSpice/Program.cs
2. NextGenSpice/plot.ps1

New version, more compatible with spice# sintaxis.

spice# and MNA v2.sm (636 KiB) downloaded 55 time(s).

spice# and MNA v2.pdf (1 MiB) downloaded 83 time(s).

Best regards.
Alvaro.

A task for implementation in the future:

Практический расчет параметров индуктивности
https://forum.cxem.net/index.php?/topic/270218-практический-расчет-параметров-индуктивности/

Plugin updated.

Changes:

- Plugin adopted to a new SMath Studio Core infrastructure;
- Folders removed from the output artefacts.
