Animation adds live to projects.
Enjoy your vist.

Jean

0Anim Brownian.sm (8.86 KiB) downloaded 1459 time(s).
0Anim Analemma.sm (28.67 KiB) downloaded 1351 time(s).
0Anim Ellipse.sm (13.42 KiB) downloaded 1388 time(s).
0Anim Cheval.sm (21.13 KiB) downloaded 1424 time(s).
0Anim Gozilla.sm (11.26 KiB) downloaded 1368 time(s).
0Anim XFR.sm (11.65 KiB) downloaded 1400 time(s).

Hi Jean
The program will run faster if the code is a little change

0Anim XFR1.sm (13.23 KiB) downloaded 1357 time(s).

Thanks Ber7 for the code.

On that one "0Anim CONVOLUTION" ... can't accumulate the path ?

Cheers, Jean

0Anim CONVOLUTION.sm (18.42 KiB) downloaded 1388 time(s).

Instead tmin = 0 substitute the tmin=1

0Anim XFR1.sm (13.23 KiB) downloaded 1398 time(s).

0Anim CONVOLUTION .sm
has been doctored for the accumulated path.
Plots are difficult to size, work sheet is Autocal OFF

Jean

0Anim CONVOLUTION.sm (30.72 KiB) downloaded 1431 time(s).

Thank you for interesting examples!

I've checked your worksheets and see one place for simple optimization applicable for most of them.
Often you use procedures to draw static set of points for all frames of animation. Procedures (when line is used right after the definition operator) calculated on every call - SMath Studio do not precalculate their values.

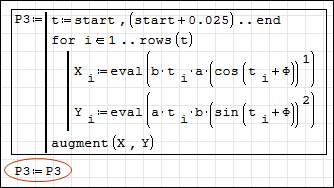

So, you can speed up calculation simply by line like this:


This line asks the program to calculate procedure and store its values into the initial procedure variable. So, we have only one calculation of static shape for the whole animation!

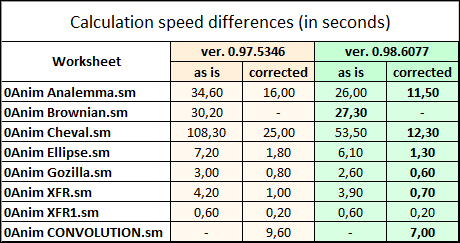

I've corrected your examples according to the hint above and tested them in both versions: 0.97.5346 - the one you have used to create files and 0.98.6077 - the latest nightly build. Here are the results:


Final versions of the worksheets:

• 0Anim Analemma.sm (28.88 KiB) downloaded 1365 time(s).

• 0Anim Brownian.sm (8.86 KiB) downloaded 1379 time(s).

• 0Anim Cheval.sm (22 KiB) downloaded 1391 time(s).

• 0Anim Ellipse.sm (13.85 KiB) downloaded 1448 time(s).

• 0Anim Gozilla.sm (11.71 KiB) downloaded 1366 time(s).

• 0Anim XFR.sm (12.01 KiB) downloaded 1356 time(s).

• 0Anim XFR1.sm (11.53 KiB) downloaded 1375 time(s).

• 0Anim CONVOLUTION.sm (28.13 KiB) downloaded 1405 time(s).

Best regards.

Thanks Andrey: I toke good note and adapted.

Jean
