Offset surface creation

#1 Posted: 10/10/2021 12:20:33 PM

520 likes in 451 posts.

Group: User

Offset surface creation
An initial surface is given, given by the "createmesh" function, which forms a
network with nodes.

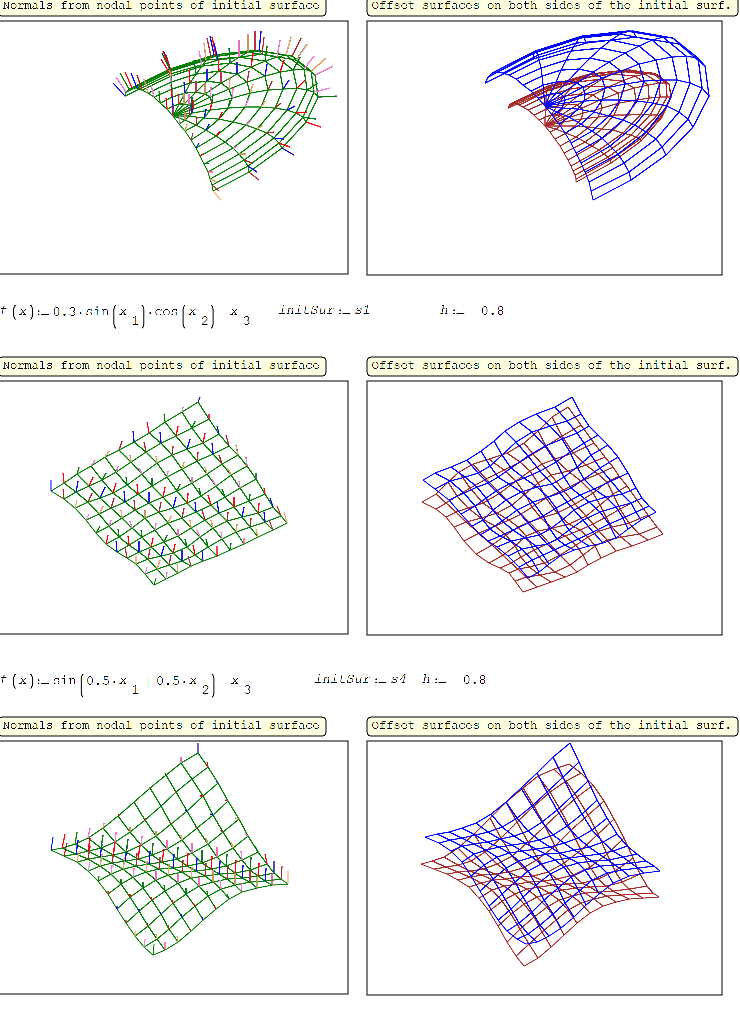

Dyou want to create an offset surface, offset by an amount h from the initial.
The direction of displacement surface epends on the sign of h.
Sequence of calculation:
1.Restoring the normal from the nodal points of the initial surface and we get
the nodal points of the displaced surface.
2.We connect the resulting node points
The image is built on three-dimensional graphics and can be rotated with the mouse

4 users liked this post

Andrey Ivashov 10/19/2021 1:48:00 PM, Oscar Campo 10/20/2021 6:42:00 PM, Davide Carpi 10/20/2021 8:27:00 AM, Alvaro Diaz Falconi 10/10/2021 8:58:00 PM

#2 Posted: 10/19/2021 11:54:16 AM

Renzo Choque

6 likes in 18 posts.

Group: User

Thank you, this is helpful.
I have a question, How did you put the icon with the link?

#3 Posted: 10/19/2021 1:58:45 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Hi,Rezorex.I put the icon with the link using the "hyperlink" insert.
Here is a link to an article from Mapleprimes
https://www.mapleprimes.com/posts/211000-Preparing-A-Parametrized-Surface-For

#4 Posted: 10/20/2021 5:22:00 AM

Alvaro Diaz Falconi

992 likes in 1675 posts.

Group: User

Hi. Thanis Ber. A slightly different version, using only parametric functions.

Offset surface creation.sm (73 KiB) downloaded 81 time(s).

Offset surface creation.pdf (917 KiB) downloaded 65 time(s).

Best regards.
Alvaro.

2 users liked this post

Davide Carpi 10/20/2021 8:27:00 AM, Fridel Selitsky 10/20/2021 8:34:00 AM

#5 Posted: 10/20/2021 9:45:16 AM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Thanks Alvaro, I continue to learn from you.
Fridel.

#6 Posted: 10/20/2021 1:31:05 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

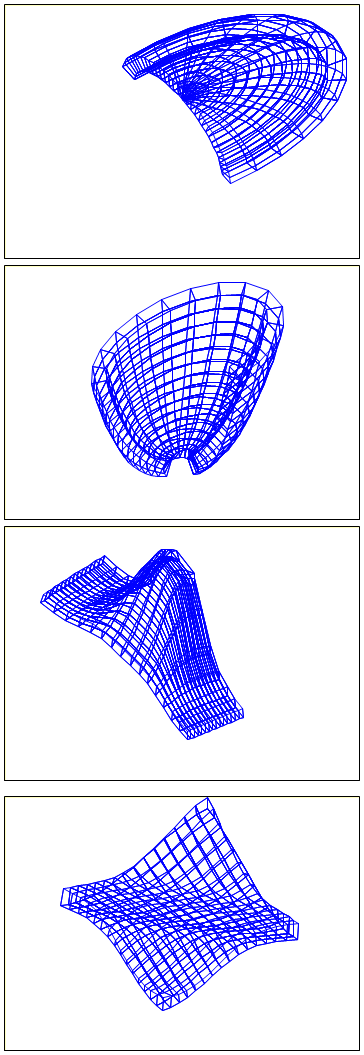

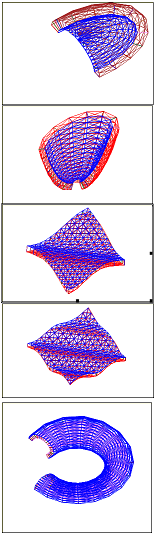

Converting Surfaces to Solids
The solid is formed from the initial surface, the offset surface, and the
lateral surface that connects them. The lateral surface is formed by normals
reconstructed from the boundary nodal points of the initial surface.
Solid.sm (36 KiB) downloaded 74 time(s).
Solid.pdf (309 KiB) downloaded 69 time(s).

1 users liked this post

Alvaro Diaz Falconi 10/20/2021 11:56:00 PM

#7 Posted: 10/20/2021 8:43:17 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Thanks ► Fridel, Alvaro
I don't have the courage to convert SS 6179 ... OK.
Keep up ... Jean.

Rotate 3D TREASURY_2 Parametric Explorer.sm (33 KiB) downloaded 62 time(s).

#8 Posted: 10/21/2021 4:31:50 AM

Alvaro Diaz Falconi

992 likes in 1675 posts.

Group: User

Wrote
Converting Surfaces to Solids

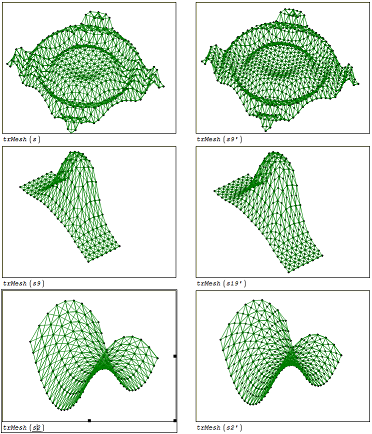

Hi Fridel. Thanks, great job. In the attached an alternate mesh. Its advantage is that it consists of a single coordinate matrix, so it can be manipulated more easily, with translations, rotations and deformations. As disadvantages, it does not look so good and there may sometimes be a wrong line, but I guess only one.

pSolid_alternate_mesh.sm (51 KiB) downloaded 57 time(s).

pSolid_alternate_mesh.pdf (391 KiB) downloaded 68 time(s).

Best regards.
Alvaro.

1 users liked this post

Fridel Selitsky 10/21/2021 5:07:00 AM

#9 Posted: 10/24/2021 11:47:27 AM

Fridel Selitsky

520 likes in 451 posts.

Group: User

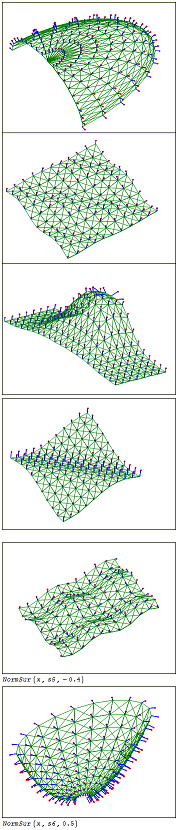

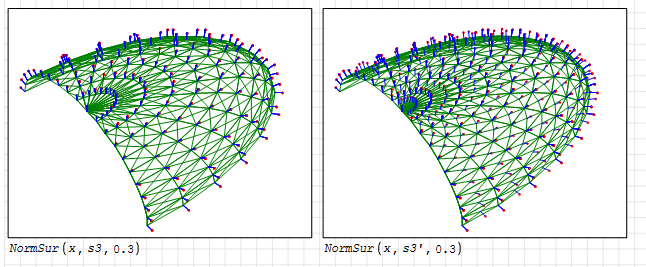

Normal to the surface on Rezonar's triangular mesh
NorSurAlvaro.sm (49 KiB) downloaded 67 time(s).
NorSurAlvaro.pdf (623 KiB) downloaded 62 time(s).
