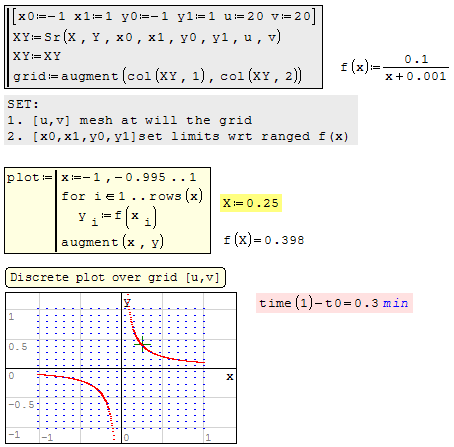

Maybe there are alternatives, this one works well.



2D Plot Discrete over Grid.sm (14 KiB) downloaded 62 time(s).

Hello Jean.

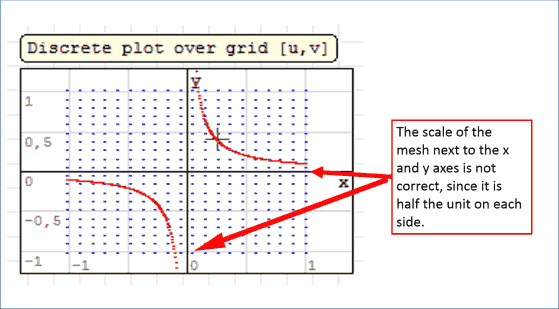

The scale of the mesh next to the x and y axes is not correct,
since it is half the unit on each side.




Best Regards

Carlos

Wrote

Hello Jean.

The scale of the mesh next to the x and y axes is not correct,
since it is half the unit on each side.

Easy to fix, Carlos ... like this.
It's normal the [XY axes] don't split exactly ½ way in
between the grid. Grid is 9 pixels, the native QuickPlot
grid spacing is 41 pixels. Handles will give either 40/41
but not 40.5. However, far superior to Mathcad/Mathsoft.

2D Plot Discrete over Grid.sm (16 KiB) downloaded 64 time(s).

Hello Jean

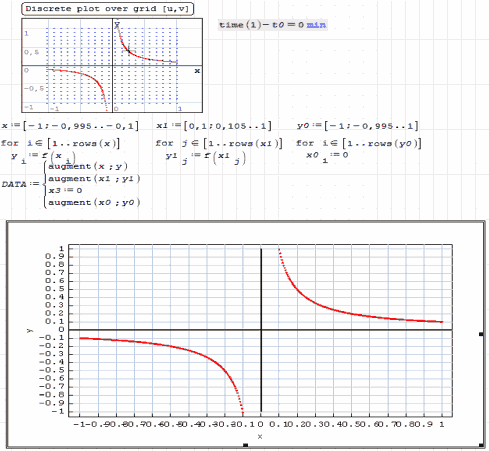

Graph of the function in X Y plot





2D Plot Discrete over Grid_CBG.sm (21 KiB) downloaded 62 time(s).


Best regards

Carlos
