Isotherm - How to draw it in h-s diagram - Messages

#1 Posted: 5/20/2024 6:28:22 PM

55 likes in 633 posts.

Group: User

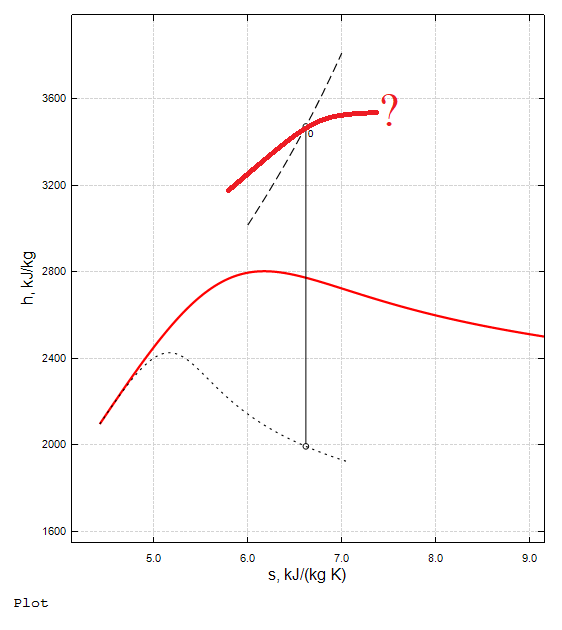

File not found.File not found.

#2 Posted: 5/21/2024 12:44:16 AM

992 likes in 1675 posts.

Group: User

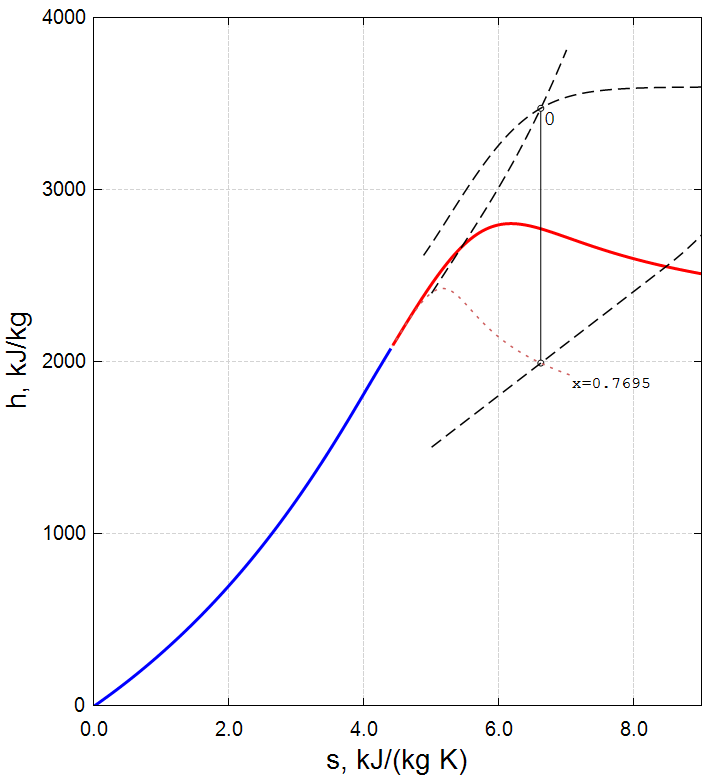

Hi. Comparing the result with the other water compound implementation.

h-s-diagram-Steam.sm (28 KiB) downloaded 53 time(s).

Best regards.
Alvaro.

1 users liked this post

Valery Ochkov 5/21/2024 1:34:00 AM

#3 Posted: 5/21/2024 1:38:28 AM

55 likes in 633 posts.

Group: User

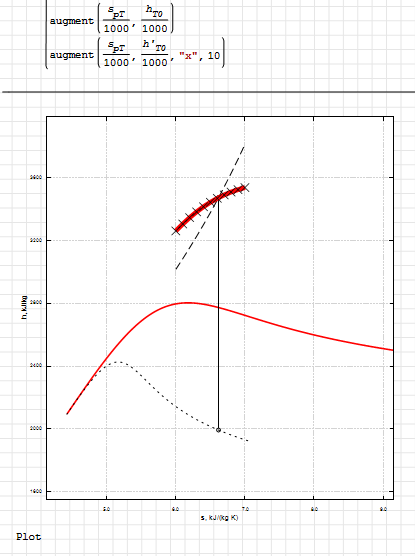

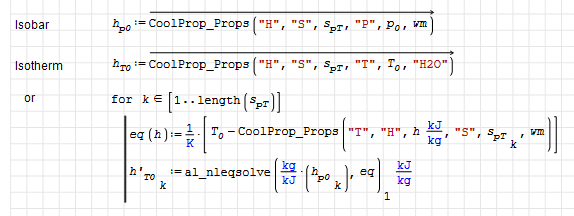

My solution. Now I'm thinking about isochore and second isotherm.
h-s-diagram-Steam.sm (31 KiB) downloaded 51 time(s).

#4 Posted: 5/21/2024 11:03:47 AM

55 likes in 633 posts.

Group: User

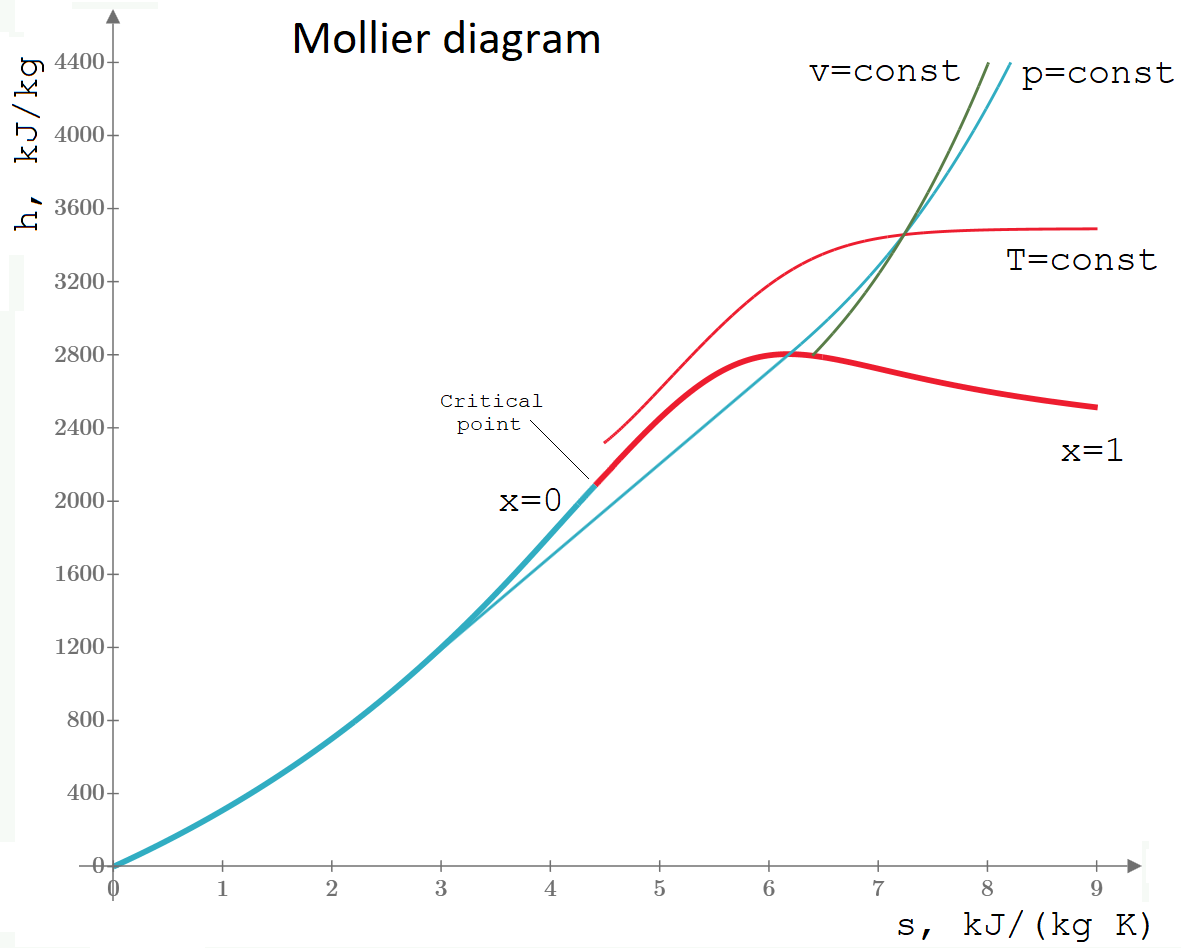

With Mathcad Prime and WaterSteamPro

#5 Posted: 5/22/2024 5:06:11 PM

55 likes in 633 posts.

Group: User

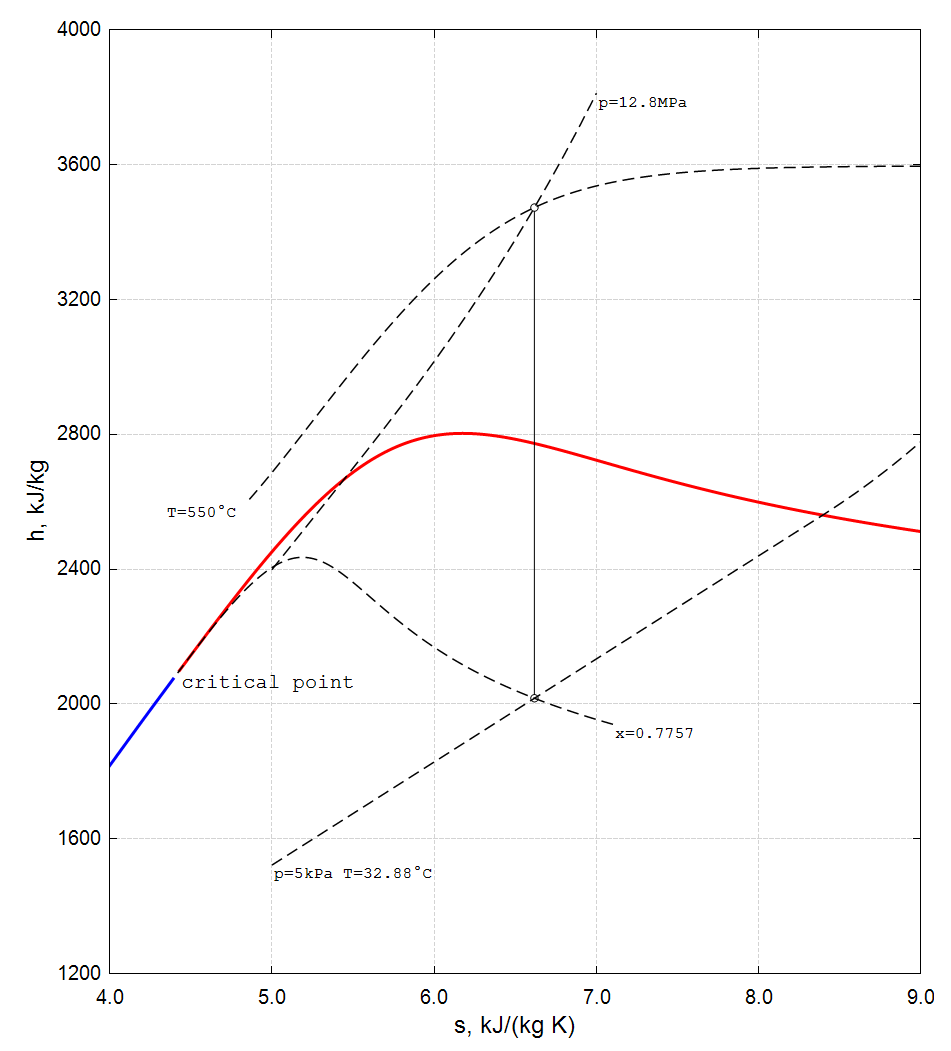

New version
h-s-diagram-Steam.sm (41 KiB) downloaded 55 time(s).
