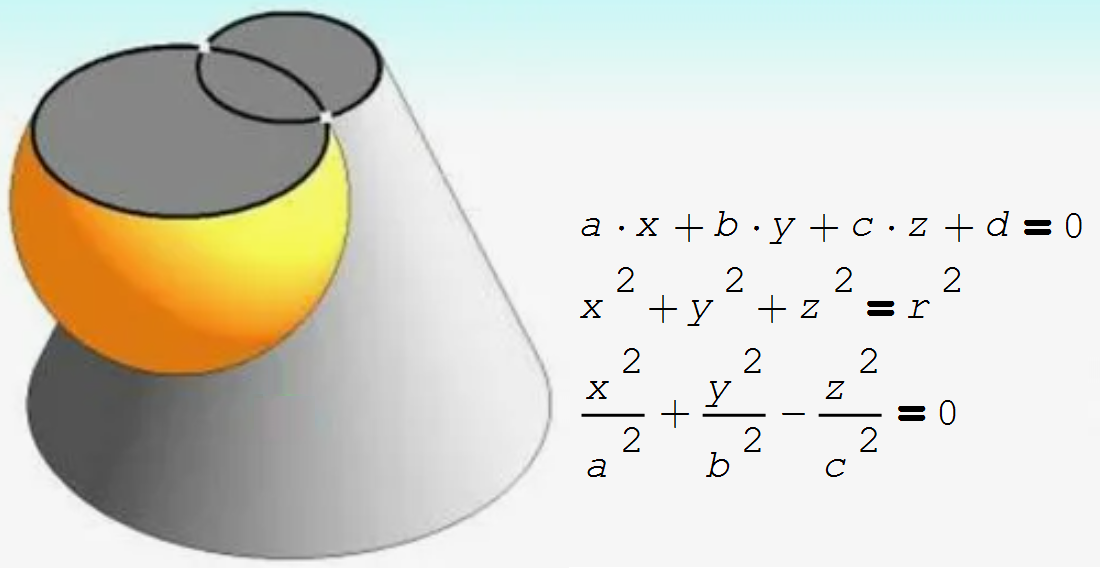

I want to solve three equations with three unknowns and display the solution on a 3D graph with two points - the roots of the equation.
Help please!

Mathcad 15

Findroot() or roots() could solve three unknown systems.
About plotting, I simply wrote equations according to solving of z.

Regards

3Dplot_OchkovVF.sm (4 KiB) downloaded 65 time(s).

3Dplot_OchkovVF_Kr.sm (329 KiB) downloaded 70 time(s).

Is there a way to use CreateMesh() for single line xyz equations?

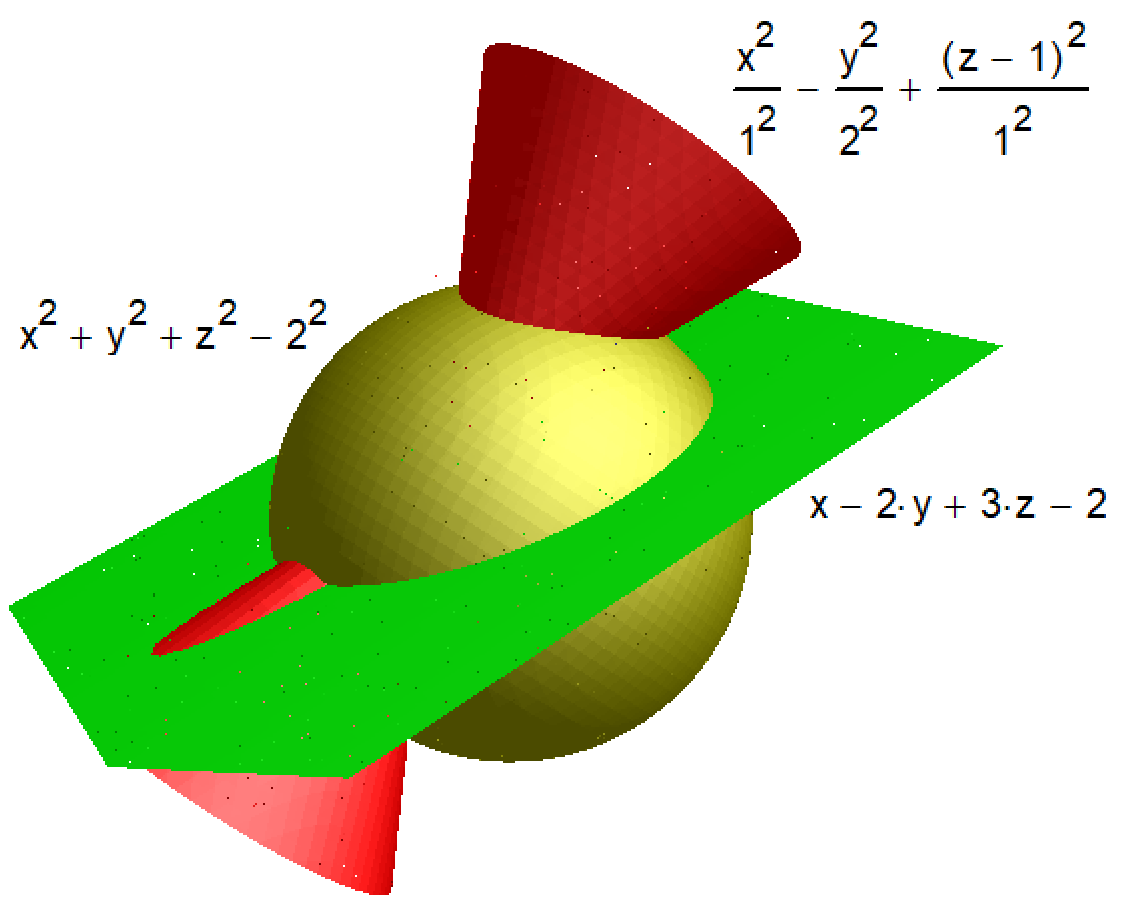

x^2+y^2+z^2-2^2 creates a sphere in 3dplot, a finer mesh can look better.
But I don't know how to convert an equation to CreateMesh().
I am asking if it is doable of course, if they are two different thing it is ok.
A simple, short but inclusive tutorial would be beneficial.

Wrote

Is there a way to use CreateMesh() for single line xyz equations?
x^2+y^2+z^2-2^2 creates a sphere in 3dplot, a finer mesh can look better.
But I don't know how to convert an equation to CreateMesh().
I am asking if it is doable of course, if they are two different thing it is ok.
A simple, short but inclusive tutorial would be beneficial.

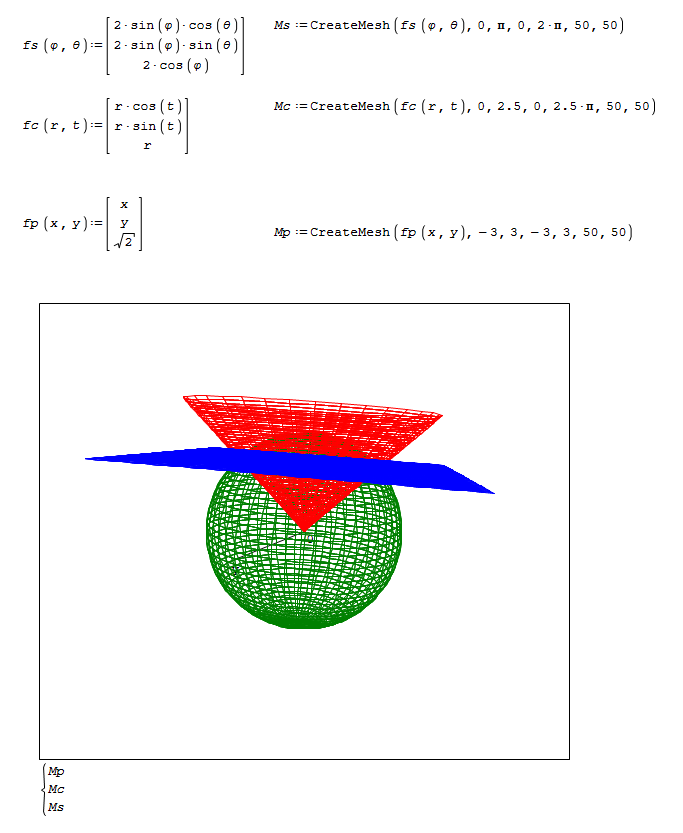

Like in the attached? (Though I confess it was a "suck it and see" approach as I don't fully understand the 3D graphing!)

TriangleSpherePlaneCreateMesh.sm (6 KiB) downloaded 66 time(s).

Wrote

Like in the attached?

Not really, my question is different.
You can make any object with CreateMesh().
You can make sphere, plane, cone, cube, etc with mesh.
I ask for a method converting a xyz function to CreateMesh() matrix.
If there is any of course.

Regards

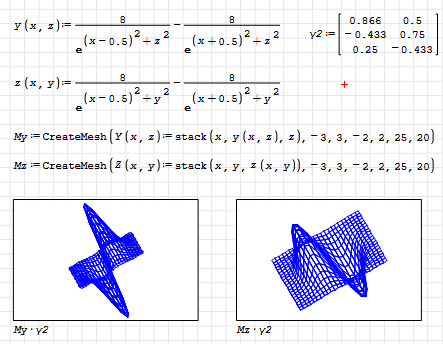

Hi Overlord. If you can isolate some of the x, y or z variables, you can use this. If not, Viacheslav develops a 3D implicit plot codes for mathcad, you can see that somewhere in the mathcad forum.

create_mesh_xy.sm (8 KiB) downloaded 66 time(s).



Best regards.
Alvaro.

Wrote

If not, Viacheslav develops a 3D implicit plot codes for mathcad, you can see that somewhere in the mathcad forum.

The dots on the graphs above are a sign of my code being used.

Wrote

I ask for a method converting a xyz function to CreateMesh() matrix.

This is only possible for simple cases if the function is easily parameterizable.
