Fourier Quantum [Momentum 2 slits].sm (18 КиБ) скачан 81 раз(а).
Fourier Quantum Airy.sm (9 КиБ) скачан 66 раз(а).
Fourier Quantum CoC Pin Hole.sm (12 КиБ) скачан 66 раз(а).
Fourier Quantum 2C Mask.sm (20 КиБ) скачан 65 раз(а).
Fourier Quantum [mask square hole].sm (67 КиБ) скачан 71 раз(а).
Fourier Quantum 2C.sm (65 КиБ) скачан 70 раз(а).
Fourier Quantum CoC Model.sm (103 КиБ) скачан 66 раз(а).
Fourier Quantum DNA.sm (357 КиБ) скачан 80 раз(а).

... suite [some didn't upload]

Fourier Quantum Slit.sm (27 КиБ) скачан 75 раз(а).
Fourier Quantum Satellites.sm (22 КиБ) скачан 71 раз(а).
Fourier Quantum Double Slit Probability.sm (36 КиБ) скачан 67 раз(а).

... CoC diffraction has been refactored
to speed up ~ 20 times faster !

Jean

Fourier Quantum CoC Model.sm (122 КиБ) скачан 75 раз(а).

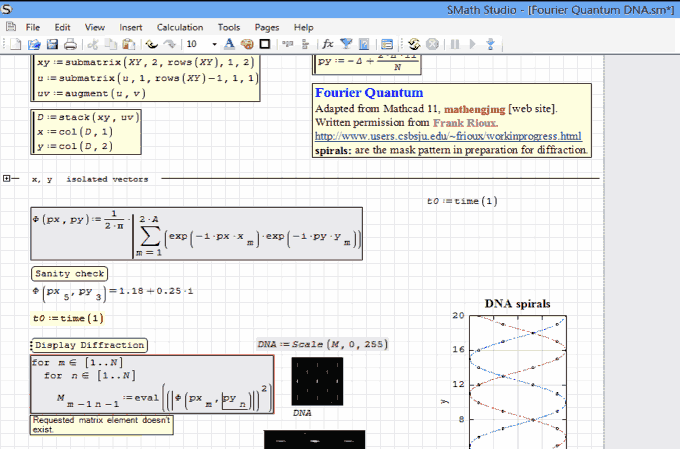

Hello Jean

I get the error "The requested matrix element doesn't exist"

I think that Smath Studio does not accept the sub-index zero,
since at the beginning of the "for" loop in the operations
M (m-1 and n-1) this value is obtained.



Best Regards

Carlos

Wrote

Hello Jean

I get the error "The requested matrix element doesn't exist"

I think that Smath Studio does not accept the sub-index zero,
since at the beginning of the "for" loop in the operations
M (m-1 and n-1) this value is obtained.

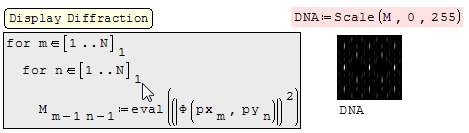

Not this way Carlos ... maybe ?

1. As you open the document, do you get [1..N]
2. original is 1..N , i.e: NOT nested
3. if you can't re-create unested 1..N
4. sub-index [1..N]1

Jean ... Does it work ?

It may have freaked all other Collabs that downloaded.
Surprising: none commented !



Fourier Quantum DNAsanity.sm (490 КиБ) скачан 59 раз(а).

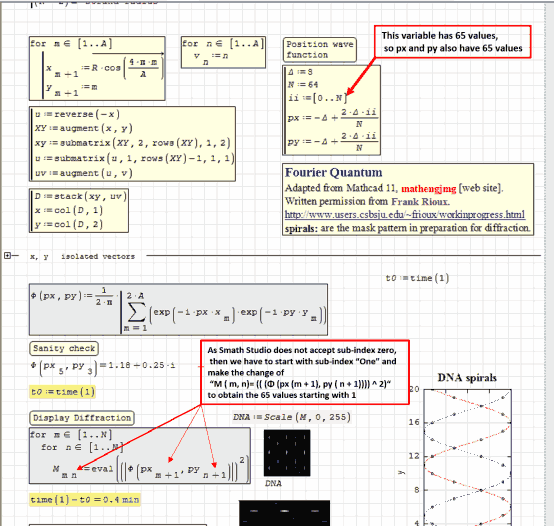

Hello Jean,

I made the changes shown in the printout shown
so that the worksheet does not indicate an error.




Fourier Quantum DNA Copy.sm (52 КиБ) скачан 63 раз(а).


Best Regards

Carlos

Wrote

Hello Jean,

I made the changes shown in the printout shown
so that the worksheet does not indicate an error.

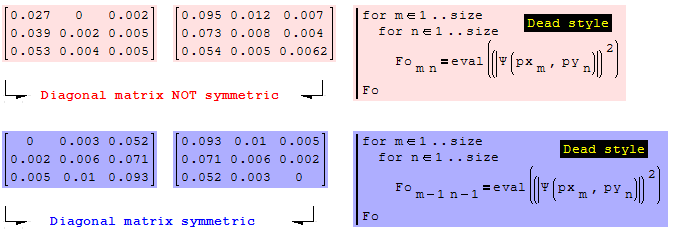

Thanks Carlos for your precious collaboration.
The size of the matrix does not matter.
What matters is a symmetric matrix.

Jean

Fourier Quantum DNA Copy [NOT Symmetric].sm (181 КиБ) скачан 63 раз(а).

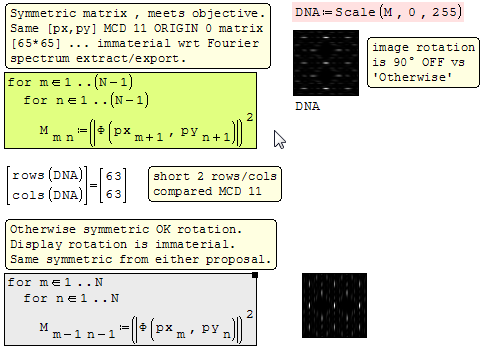

Wrote

What matters is a symmetric matrix.

This project is one of some that don't reconciliate the 0/1 indexing base.
For this particular application, it is immaterial wrt the end use.
Just interesting to be aware. Seemingly, 0 indexing is more universal.

Jean



Fourier Quantum DNA Copy [Symmetric Reconciliation].sm (182 КиБ) скачан 66 раз(а).
Fourier Quantum DNAsanity.sm (488 КиБ) скачан 66 раз(а).

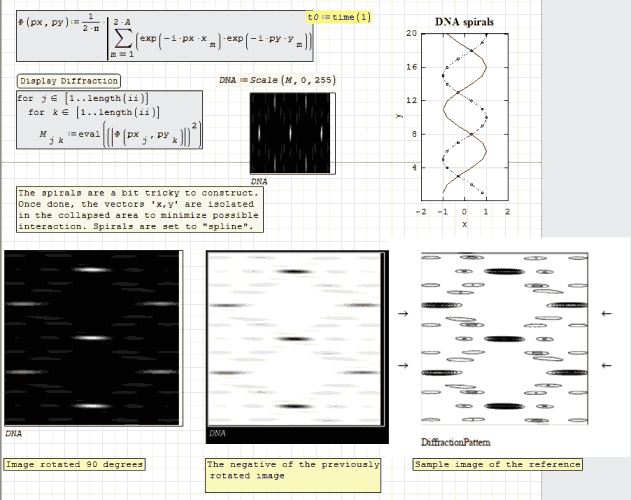

Hello Jean.

Following the steps indicated in the document;
dna.pdf (181 КиБ) скачан 49 раз(а).
which I have downloaded from the reference you indicate,
and with the data shown there, the following
pattern of refraction is opted;



Fourier Quantum_Jean_Original_Values.sm (221 КиБ) скачан 61 раз(а).

And I wonder if it will be possible:
get the negative of the image in a native way in Smath Studio?

Best Regards

Carlos

Wrote

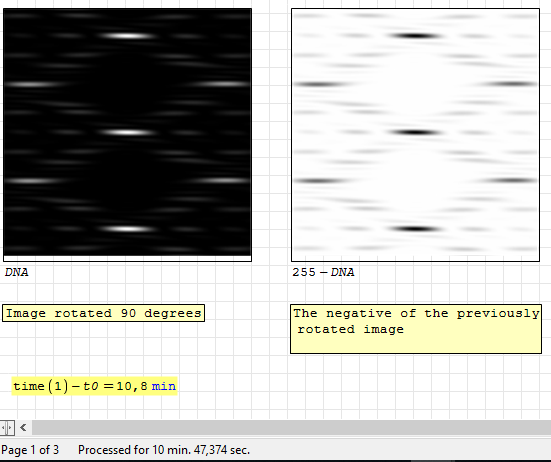

And I wonder if it will be possible:
get the negative of the image in a native way in Smath Studio?

It's greyscale, I guess 255-DNA should be enough....



Fourier Quantum_Jean_Original_Values - opt_01.sm (167 КиБ) скачан 62 раз(а).

Hello: Carlos, Davide ... thanks for your interest.

Ah! this time, SS 6179 does not open 6884.
The Mathcad 11 0 base index original document produces
the required square symmetric matrix. Smath can do it
only as demonstrated. That the SS/MCD matrices are NOT
exactly same is immaterial. The SS symmetric best imitates MCD.

Why SS 6179 does not open 6884 ? Error message is not inductive.
Presumably, 6884 does not save the image compatible to 6179.

Quantum slit runs in less time for exploring symmetric/asymmetric.

Jean



Fourier Quantum Slit.sm (37 КиБ) скачан 61 раз(а).
