Hi,

These two examples solve the problem calculations for the total biomass formed in a batch bioreactor and the pattern flow of a reactor with a pulse of some tracer. The splines method and the Simpson integration formula found in the forum let me solve both problems.


Kind regards,


splines_integral_data.sm (30 КиБ) скачан 80 раз(а).

splines_integral_data1.sm (31 КиБ) скачан 83 раз(а).

Hello

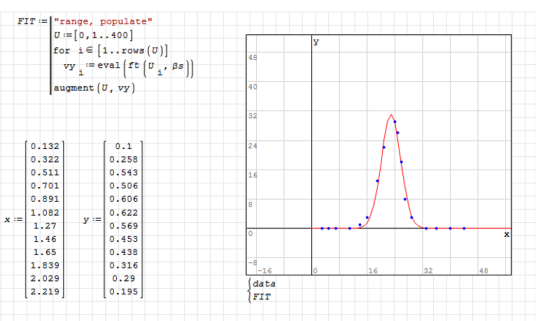

Fitting Javier's data to the Gauss function by the Levenberg-Marquardt Algorithm



Javier_fit_CBG.sm (37 КиБ) скачан 70 раз(а).


Best Regards

Carlos

Hi Jean and Carlos,
These worksheets help me to better understand the problem which I tried to solve.

Thanks in advance,

Hi Jean and Carlos,

I am curious about your thoughts for the result I found using the al_nlqsolve routine from ALGLIB.

May be I was lucky to find a similar solution.

Kind regards,


LevenbergMarquardt_solver.sm (27 КиБ) скачан 74 раз(а).

Wrote

Hi Jean and Carlos,

I am curious about your thoughts for the result I found using the al_nlqsolve routine from ALGLIB.

May be I was lucky to find a similar solution.

Kind regards,


LevenbergMarquardt_solver.sm (27 КиБ) скачан 74 раз(а).

Hi Javier

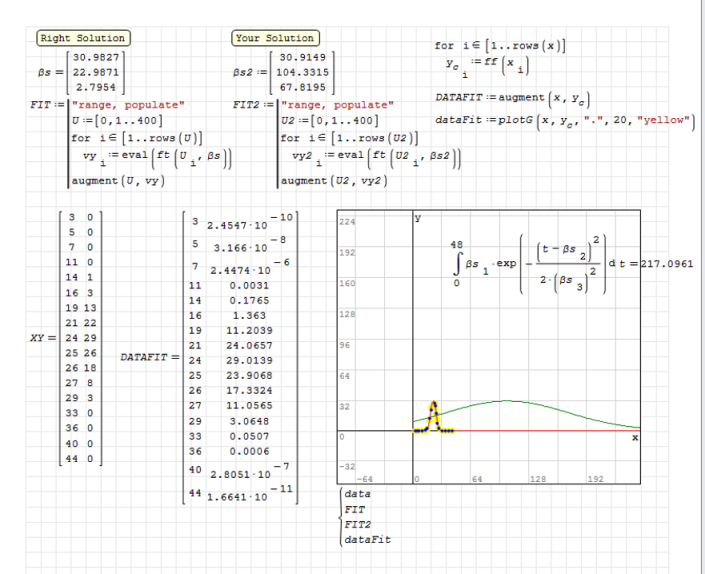

As you can see in the graph, the green line is that of your solution,
and it is not correct, since it does not fit the data.



It is always important to draw the curve

Javier fit.sm (24 КиБ) скачан 55 раз(а).

Best Regards

Carlos

Hola Javier. Your Levenberg Marquardt algorithm works pretty well, but you choose a bad guess starting point, with a very high tolerance. BTW, I made some few modifications and use also other target function.

LevenbergMarquardt_solver.sm (32 КиБ) скачан 75 раз(а).
LevenbergMarquardt_solver.pdf (233 КиБ) скачан 66 раз(а).

Best regards.
Alvaro.

Wrote

Hi,

These two examples solve the problem calculations for the total biomass formed in a batch bioreactor and the pattern flow of a reactor with a pulse of some tracer. The splines method and the Simpson integration formula found in the forum let me solve both problems.


Kind regards,


splines_integral_data.sm (30 КиБ) скачан 80 раз(а).

splines_integral_data1.sm (31 КиБ) скачан 83 раз(а).

Hola Javier. You can also use this code for integrate and differentiate tabulated data.



splines_integral_data.sm (85 КиБ) скачан 73 раз(а).

splines_integral_data.pdf (180 КиБ) скачан 66 раз(а).

Best regards.
Alvaro.

.. refreshed/augmented.
Cheers ... Jean.

Inst_Frechet GAUSSIAN.sm (92 КиБ) скачан 68 раз(а).
