problem with solving a system of equations

#1 Опубликовано: 17.08.2024 00:07:15

Prmtv

0 сообщений из 49 понравились пользователям.

Группа: User

Hello!

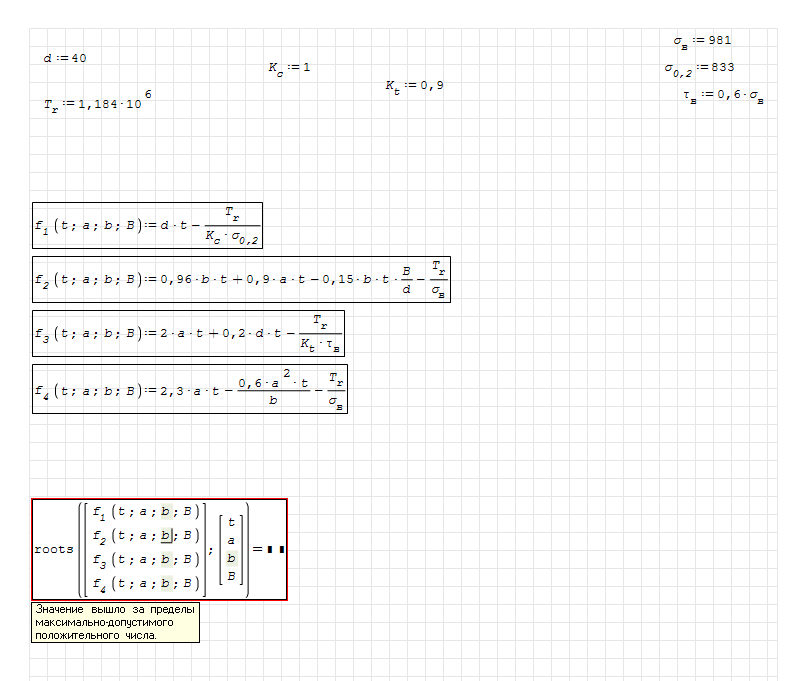

Such a problem appeared. Please tell me what's the matter

00.sm (9 КиБ) скачан 65 раз(а).

Thanks!

#2 Опубликовано: 17.08.2024 05:49:32

Martin Kraska

1222 сообщений из 2150 понравились пользователям.

Группа: Moderator

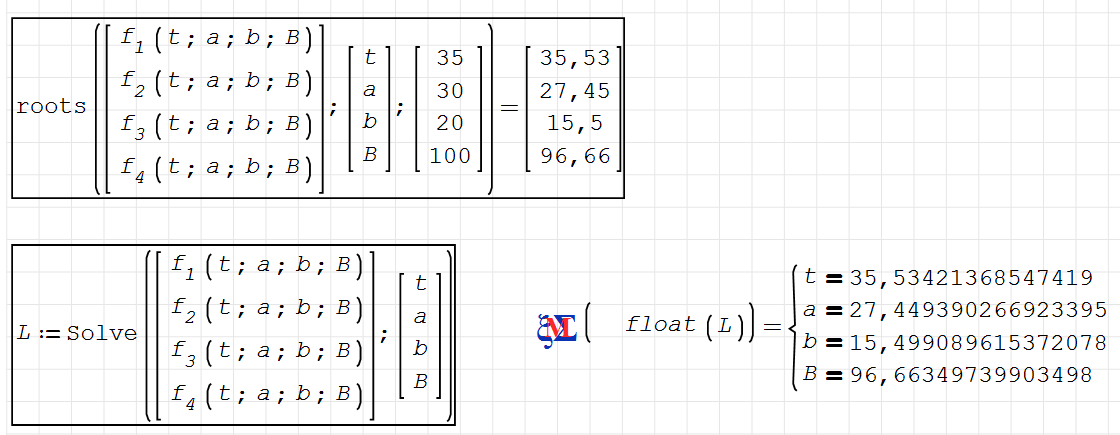

roots() in this case needs a custom initial guess.

00_Kr.sm (13 КиБ) скачан 61 раз(а).

2024-08-17 00_46_56-SMath Solver - [00.sm_].png

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#3 Опубликовано: 18.08.2024 00:20:41

Prmtv

0 сообщений из 49 понравились пользователям.

Группа: User

Wrote
roots() in this case needs a custom initial guess.

00_Kr.sm (13 КиБ) скачан 61 раз(а).

how to choose the right one initial guess?

#4 Опубликовано: 18.08.2024 04:15:52

overlord

554 сообщений из 1333 понравились пользователям.

Группа: Moderator

Wrote
how to choose the right one initial guess?

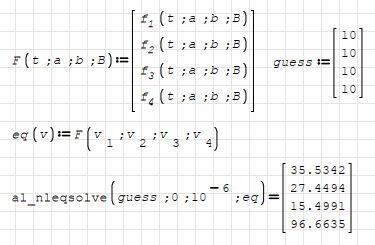

What I can suggest is to use right solver.

#5 Опубликовано: 18.08.2024 19:25:46

Prmtv

0 сообщений из 49 понравились пользователям.

Группа: User

Wrote

Wrote
how to choose the right one initial guess?

What I can suggest is to use right solver.

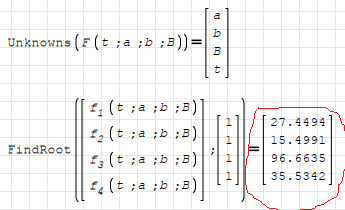

how is the order of output of variables determined? From function "Unknowns"?

#6 Опубликовано: 18.08.2024 19:51:08

overlord

554 сообщений из 1333 понравились пользователям.

Группа: Moderator

Wrote
how is the order of output of variables determined? From function "Unknowns"?[/attach]

My guess and and experience is they are ordered alphabetically.

#7 Опубликовано: 22.08.2024 23:23:22

Prmtv

0 сообщений из 49 понравились пользователям.

Группа: User

Wrote

Wrote
how to choose the right one initial guess?

What I can suggest is to use right solver.

Thanks!

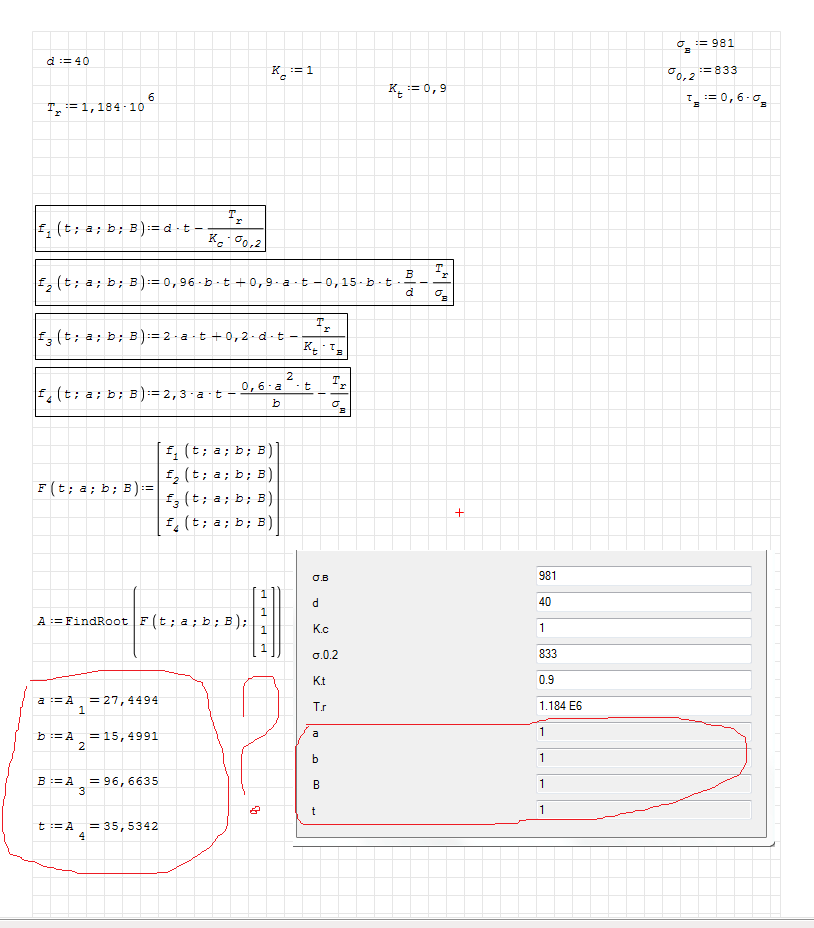

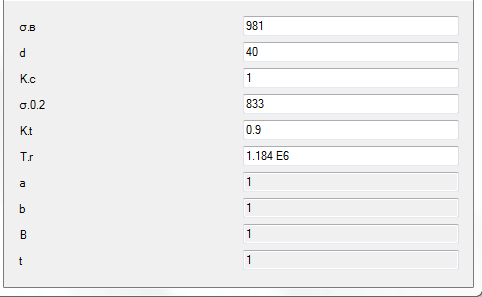

But when creating exe-file required variables a, b, B, t = 1. Why does this happen? Or is this a feature of the plugin "Nonlinear solvers"?

#8 Опубликовано: 23.08.2024 00:05:06

overlord

554 сообщений из 1333 понравились пользователям.

Группа: Moderator

I can't know what you have done without your sheet.
However, this was not an issue when I saved it as an exe.

Regards

#9 Опубликовано: 23.08.2024 03:42:01

Prmtv

0 сообщений из 49 понравились пользователям.

Группа: User

Wrote
I can't know what you have done without your sheet.
However, this was not an issue when I saved it as an exe.

Regards

If I use the function "al_nleqsolve" then everything really works

The problem occurs when using the function "FindRoot"

#10 Опубликовано: 23.08.2024 04:11:17

overlord

554 сообщений из 1333 понравились пользователям.

Группа: Moderator

It is due to some bug or miscode for FindRoot().
Or this is totally SMath result parse method.
Your solution (A) is stored symbolic.
Make it totally numeric by eval().
Exe file can show correct results after that.

Regards

#11 Опубликовано: 26.08.2024 01:33:45

Prmtv

0 сообщений из 49 понравились пользователям.

Группа: User

Wrote
It is due to some bug or miscode for FindRoot().
Or this is totally SMath result parse method.
Your solution (A) is stored symbolic.
Make it totally numeric by eval().
Exe file can show correct results after that.

Regards

Thanks!
