Works fine.

Inst_pH Solution.sm (24 КиБ) скачан 56 раз(а).

Wrote

Works fine.

... refreshed, optimized calculation timing
Added the buffered plot to be splined for + values.

Inst_pH Solution.sm (44 КиБ) скачан 68 раз(а)....refreshed/augmented

Hello Jean,

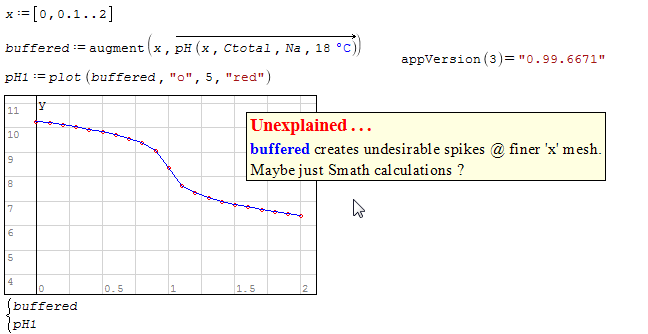

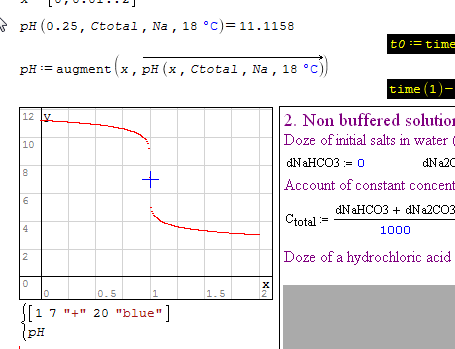

For me, the first plot is working

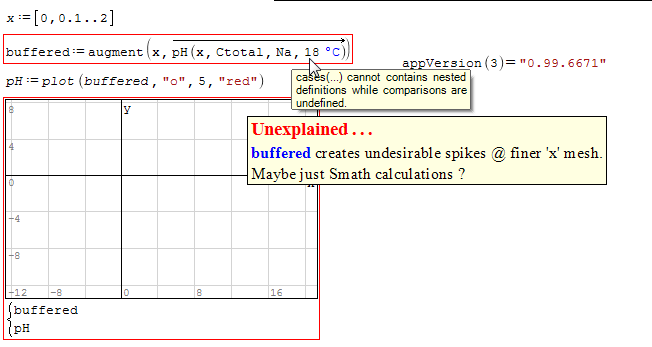

but the second is not - cases() is complaining.

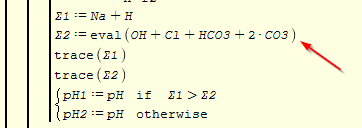

I could see that sigma2 went nuts (do not know why) and put eval() in front of it





I do not have the explanation of this - might be a bug.

Regards,
Radovan

Wrote

I do not have the explanation of this - might be a bug.

1. Can't understand the error cases(,) [6671]
2. Make unit K was first problem , done well.

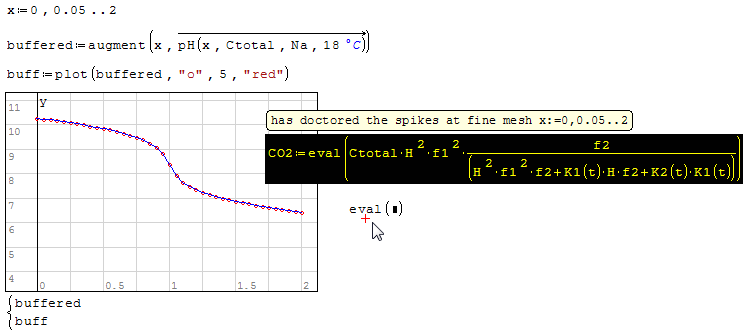

3. Doctoring for the spikes works and accelerates calculation timing.



Inst_pH Solution Copy.sm (46 КиБ) скачан 54 раз(а).

Can you explain sheet. I was looking at creating a Langelier Saturation Index (LSI) for quick analysis and this appears to be going in that direction

Wrote

Can you explain sheet.I was looking at creating a Langelier Saturation Index (LSI) for quick analysis and this appears to be going in that direction

The program is a dual iterative solver.
Give some more about Langelier saturation index.

Wrote

I was looking at creating a Langelier Saturation Index (LSI)

Langelier saturation index [LI] has nothing to do wrt unbuffered.
As it looks, there are lot of those things already tabulated.
Wait and see if you can come up with some interesting stuff.

Jean
