Wrote

If you sometimes see a similar problem, then this is an error in the operation of a parallel algorithm used to speed up data processing.

Are these indecent lines result for same kind of problem?
It doesn't matter when cases() used by the way, same issue.

Regards

Wrote

Are these indecent lines result for same kind of problem?

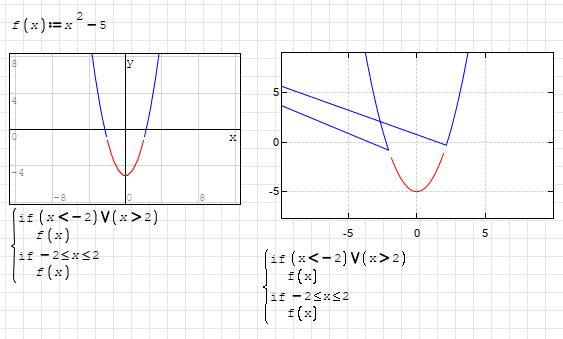

No, this problem is related to the drawing algorithm. This algorithm skips points that cannot be drawn. It doesn't always work correctly at the end of lines. I am aware of this and have not yet found the time to rewrite the algorithm to be more universal.

I'm really enjoying the ability to use XY plots to visualize parametric drawings (ie polygons, poly lines etc). Great work Uni et al.

However, I don't understand:
1. Why does a vector line matrix needs to be contained within a 1x1 matrix? I'm guessing that is the answer: ie it needs to be 1 element to be parsed. Is that correct?
2. How do you create fill? For example, green fill between the points (0,0), (1,0), (1,1) and (0,1)?

Thanks!

Wrote

2. How do you create fill? For example, green fill between the points (0,0), (1,0), (1,1) and (0,1)?

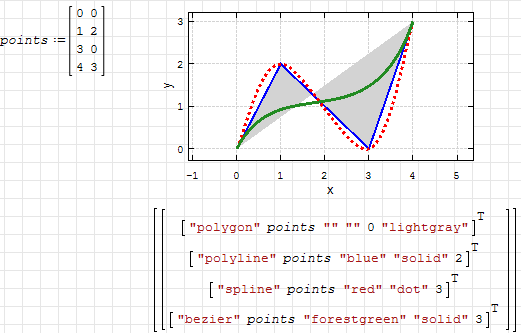

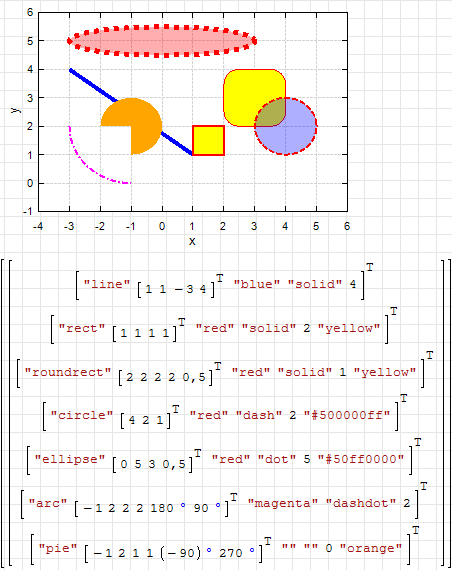

The pre-defined objects in the XY-Plot-plugin might help.

Thank you both. Martin: is there a place were the available pre-defined objects are documented?

I'm doing something wrong:



Not Working.sm (5 KiB) downloaded 56 time(s).

Wrote

I'm doing something wrong:

Rename your matrix point to points.

PBKAC! Thanks overlord.

Is there a list/documentation somewhere of the built-in objects?

Section 8.3.4 in the german handbook.

Or have a look at the interactive handbook: Graphics> 2D plots (plugin X-Y Plot)

Also, have a look at the topic starter post of this thread, there is extensive documentation on this plugin.

The interactive handbook (tools-plugins-interactive handbook) was most helpful.

An excellent reference. Thank you Martin.

XYPlot: Plot Polygons: Complex Number Column Vectors

I'm hoping to plot polygons with complex number vertices as the coordinate pairs: ie x-coordinate = the real part, and y-coordinate = the imaginary part.

Is that possible? If not, would native handling of complex numbers as coordinate pairs by XYPlot be useful?

I've looked at both section 8.3.4 of the German handbook and also the Tools>Plugins>Interactive Handbooks>Interactive SMath Handbook>Graphics>2D Plots>X-Y Plot and can't find anything regarding complex number handling.

This kind of thing:

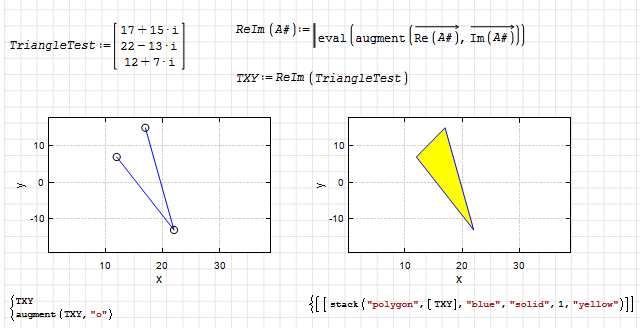

20230131 Triangle Test Complex XYPlot.sm (102 KiB) downloaded 55 time(s).

Thank you!

Wrote

XYPlot: Plot Polygons: Complex Number Column Vectors ...

Hi. This could be an option.



20230131 Triangle Test Complex XYPlot.sm (106 KiB) downloaded 69 time(s).

Best regards.
Alvaro.

Wrote

Is that possible? If not, would native handling of complex numbers as coordinate pairs by XYPlot be useful?

It can be done, but I doubt that it is necessary. Can you give an example where such an interpretation of complex numbers is used? I mean famous mathematical applications.

Thanks Uni.

No sorry, I'm just an engineer.

Stuff I'd use it for are:
* Visualsation of complex impedances (eg RF matching, filters, branching etc), and
* 2D visualisation (eg polygons for estimation of state).

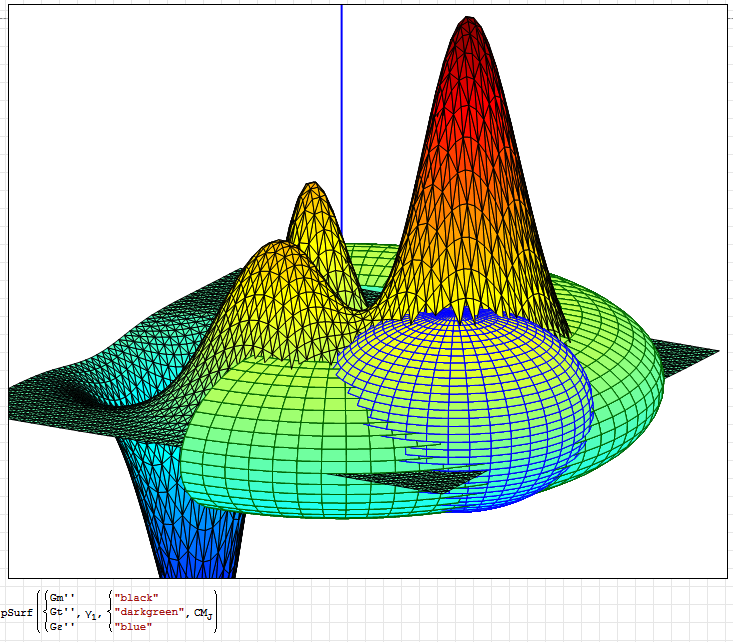

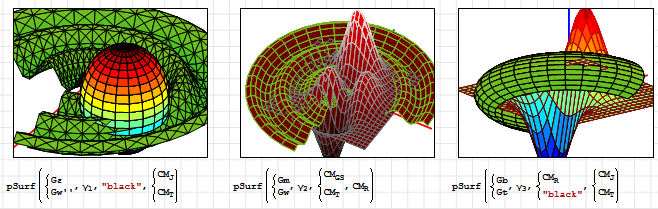

Functions for grids, meshes and plot surfaces. Support triangular meshes and multiple surfaces in the same plot.

[albumimg]1672[/albumimg]

[albumimg]1673[/albumimg]

pSurf.sm (315 KiB) downloaded 243 time(s).

pSurf.pdf (2 MiB) downloaded 235 time(s).

Best regards.
Alvaro.

Hi would it be possible to add an option to make splot square or have arbitrary X/Y proportion?
It would make making plots that are supposed to be proportional much easier.

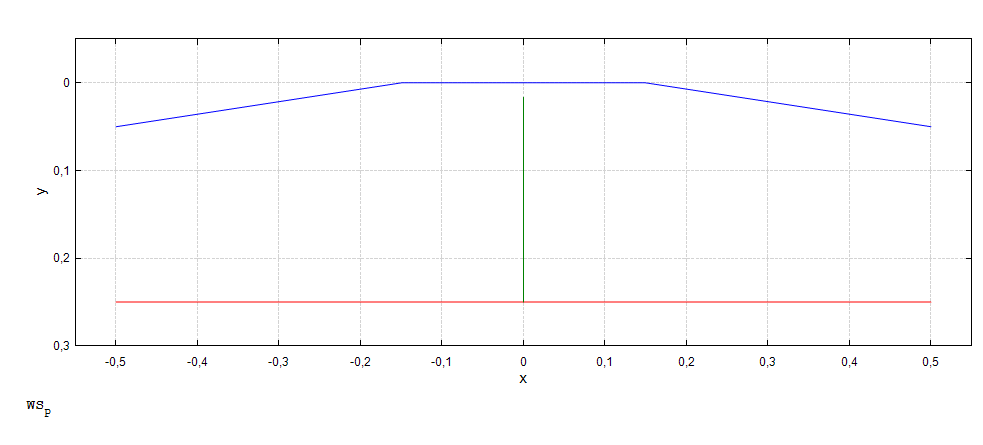

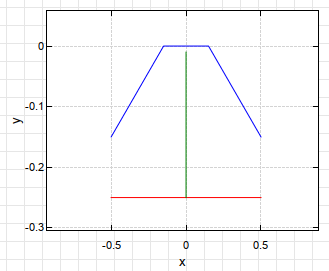

For example keeping this drawing square would be much easier:

Wrote

Hi would it be possible to add an option to make splot square or have arbitrary X/Y proportion?

If I understood you correct, this option already exist.
Try to scroll with control or shift key pressed. This will either change X or Y scale depending the key used.

Regards

Wrote

Hi would it be possible to add an option to make splot square or have arbitrary X/Y proportion ?

You can use the square plot technique on either or both direction
Tabulate X & Y ... (X*a)±b,,,(Y*c)±d

Wrote

For example keeping this drawing square would be much easier:

Here your functions plotted to square region.

Regards

My bad, what I need is to have the grid be square not the entire plot.
I want the drawing to be proportional.

Wrote

My bad, what I need is to have the grid be square not the entire plot.
I want the drawing to be proportional.

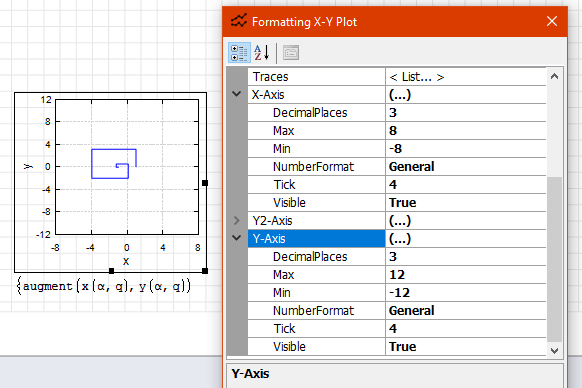

Hi. Double clicking on the plot, you can access to the grid options for changing the 'Tick' value.



Best regards.
Alvaro.
