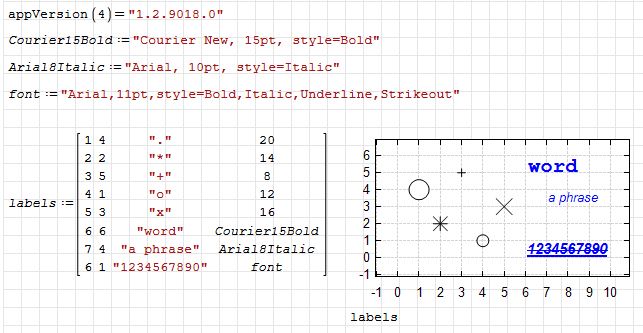

Plugin updated. This string representation is standard for c# Font type.

Changes:

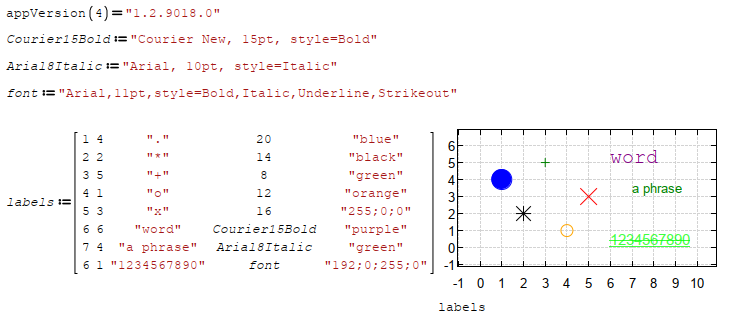

- added font setting for text labels.

xyplot-text-lablels-font-example.sm (6 KiB) downloaded 82 time(s).

Thanks Viacheslav for this excellent work
Would it be possible to add the font color ?

The color can be set in the same way as before.

Now Uni there is a last effort ro address the issue of the font zooming , I imagine that it would be possible to trap the mouse weel event and scale the fonts used in the text in the XY Plot Plugin accordingly.
My best wishes to succeed , best regards

Franco

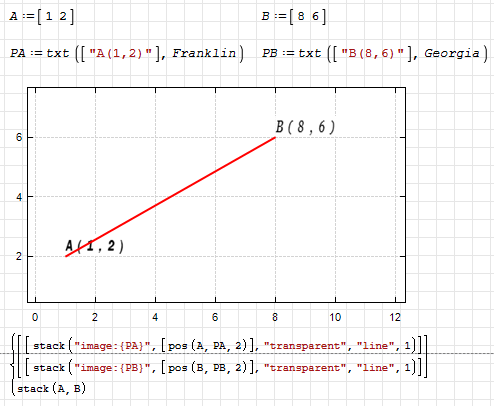

Scalable monospaced bitmapped fonts in XYPlot.



XYPlot - Scalable monospaced bitmapped fonts.pdf (419 KiB) downloaded 51 time(s).

XYPlot - Scalable monospaced bitmapped fonts.sm (3 MiB) downloaded 60 time(s).

Best regards.
Alvaro.

In this post @mkraska referred:

Quote

In X-Y Plot, you can use geometric objects to create the lines and perhaps also a legend.

What does he mean?

Wrote

What does he mean?

Something like that I suppose.

Wrote

Wrote

What does he mean?

Something like that I suppose.

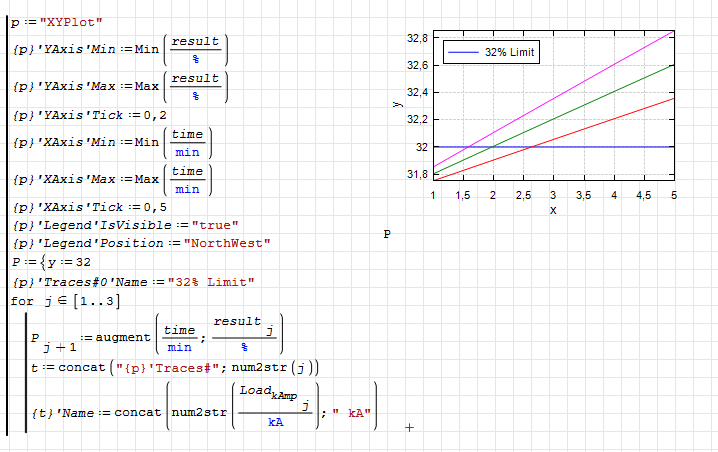

Somehow I don't manage to produce the traces settings in a loop.


NaOH_Demiwater_VECTOR_Kr.sm (197 KiB) downloaded 56 time(s).

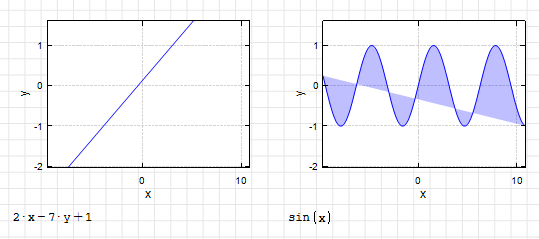

Hi. How to fill a half plane and a half wave?



filling question.sm (5 KiB) downloaded 56 time(s).

Best regards.
Alvaro.

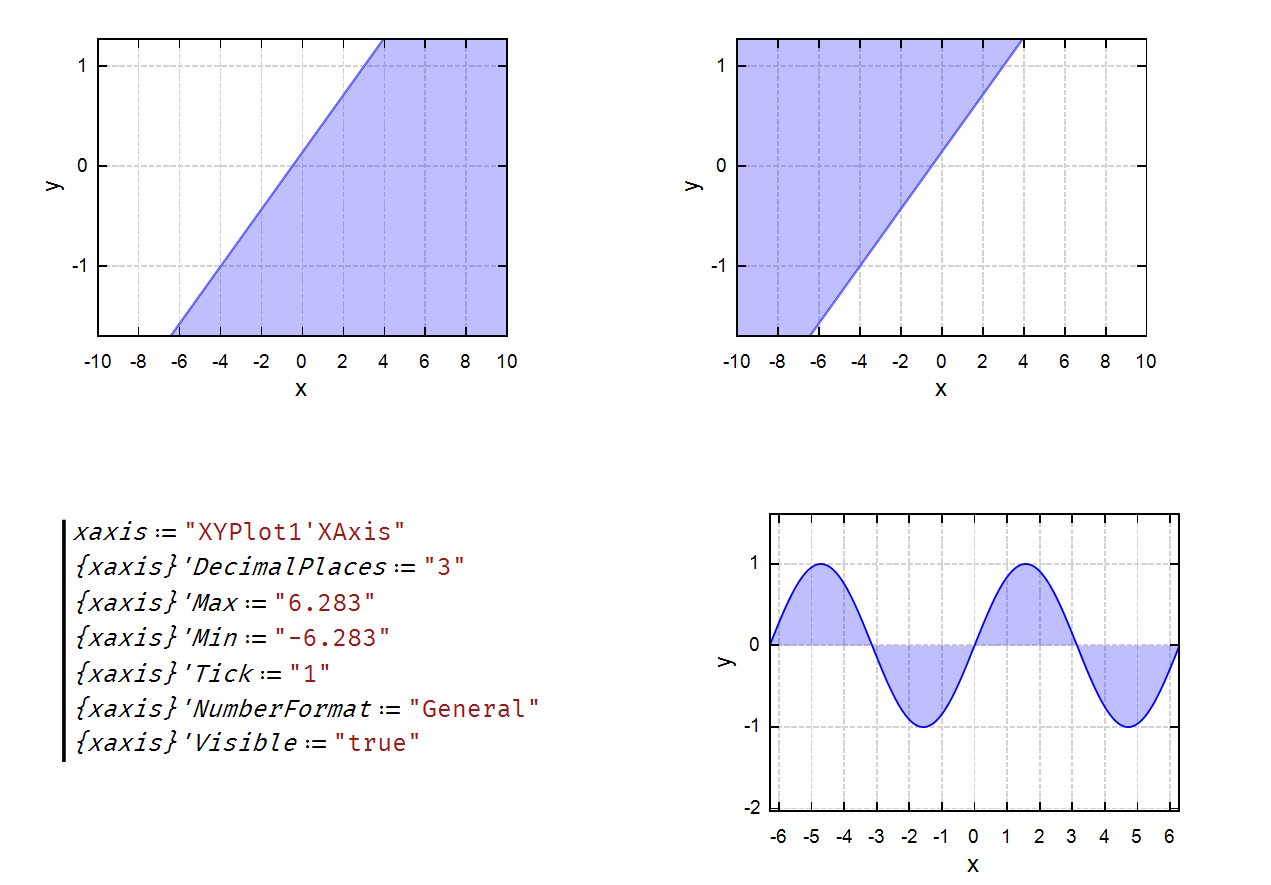

Some manipulations...

[albumimg]1729[/albumimg]

filling approach.sm (13 KiB) downloaded 58 time(s).

Best,
Oscar

Wrote

Some manipulations...

Gracias Oscar! Very clever solutions, especially the half plane one.

Best regards.
Alvaro.

Wrote

Somehow I don't manage to produce the traces settings in a loop.

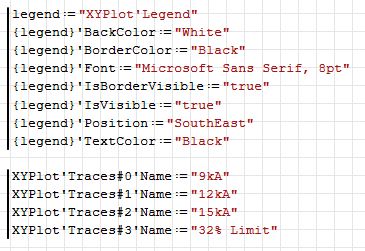

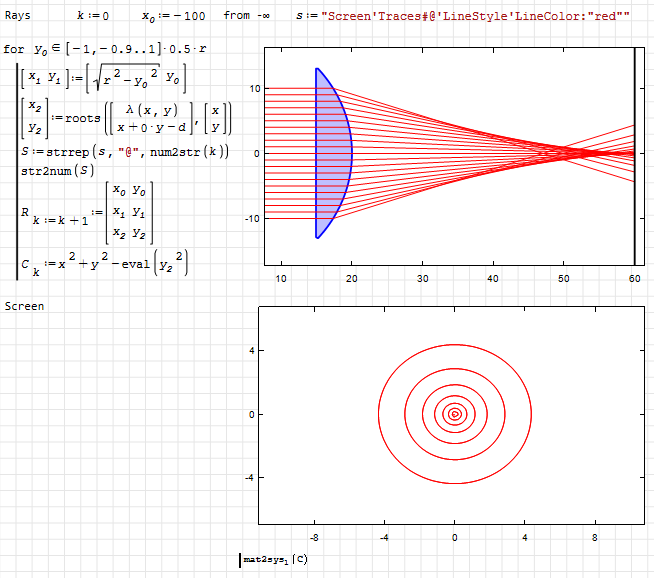

This needs to be done differently. Alvaro showed a working version somewhere here. You need to include the assignment sign in the string and then transform the text expression in a cycle. The thing is that substitution in curly brackets is not a native operation, but a feature of the component. Therefore, the substitution will not occur this way; you need to form the full expression in the text representation.

spherical aberration.sm (26 KiB) downloaded 73 time(s).

Wrote

Somehow I don't manage to produce the traces settings in a loop.

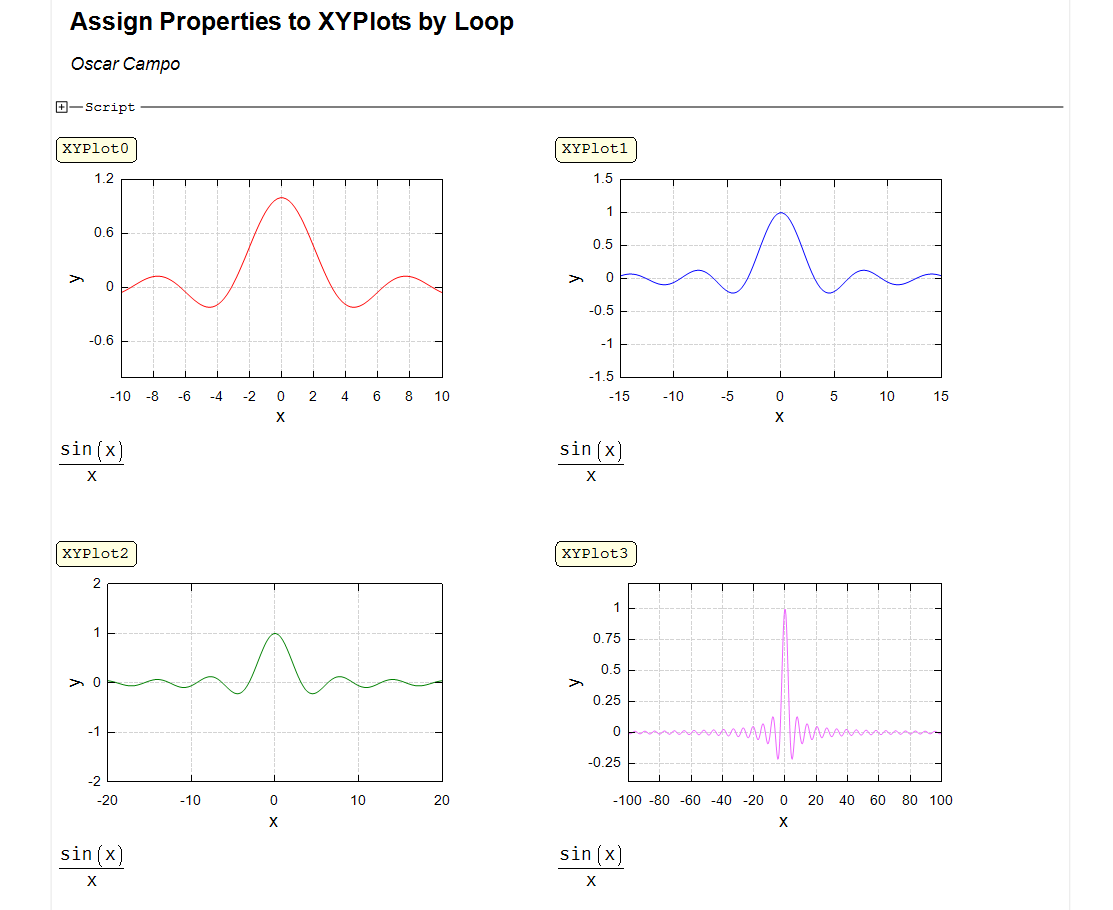

An example...

[albumimg]1731[/albumimg]

Assign Properties by Loop.sm (19 KiB) downloaded 48 time(s).

Best,
Oscar

Wrote

Hi. How to fill a half plane and a half wave?

I might try adding behavior for endpoints when filling paths. Right now the default behavior is to just close the endpoints, but that behavior could be changed. For that, I'd need to iterate over all possible use cases.

Wrote

Wrote

Hi. How to fill a half plane and a half wave?

I might try adding behavior for endpoints when filling paths. Right now the default behavior is to just close the endpoints, but that behavior could be changed. For that, I'd need to iterate over all possible use cases.

In Maxima draw, there is an option filled_function, which allows to specify a second function which defines the other side of the fill. Simply saying 0 fills to the axis, some big value fills to the boundary (top or bottom). This is much like in the hatch snippet, where 2 functions are specified.

In X-Y plot you could take a second function of the same variable in a row or in a list (just like with parametric functions, just with undefined dummy variable or you could say "to next", referring to the next trace, other options could be "to x", "to y", "to top" "close along border" etc.

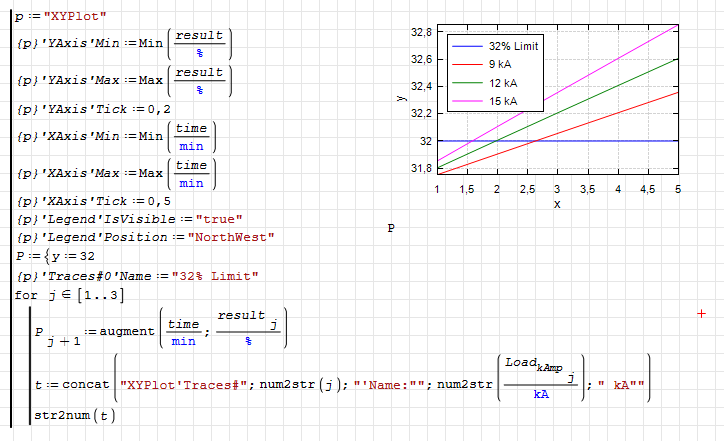

So I understand if I don't use {} in a loop then I am safe. Of course, I could use p while building the string in the loop.


NaOH_Demiwater_VECTOR_Kr.sm (197 KiB) downloaded 52 time(s).

Wrote

... In Maxima draw, there is an option filled_function, which allows to specify a second function which defines the other side of the fill. Simply saying 0 fills to the axis, some big value fills to the boundary (top or bottom). This is much like in the hatch snippet, where 2 functions are specified.

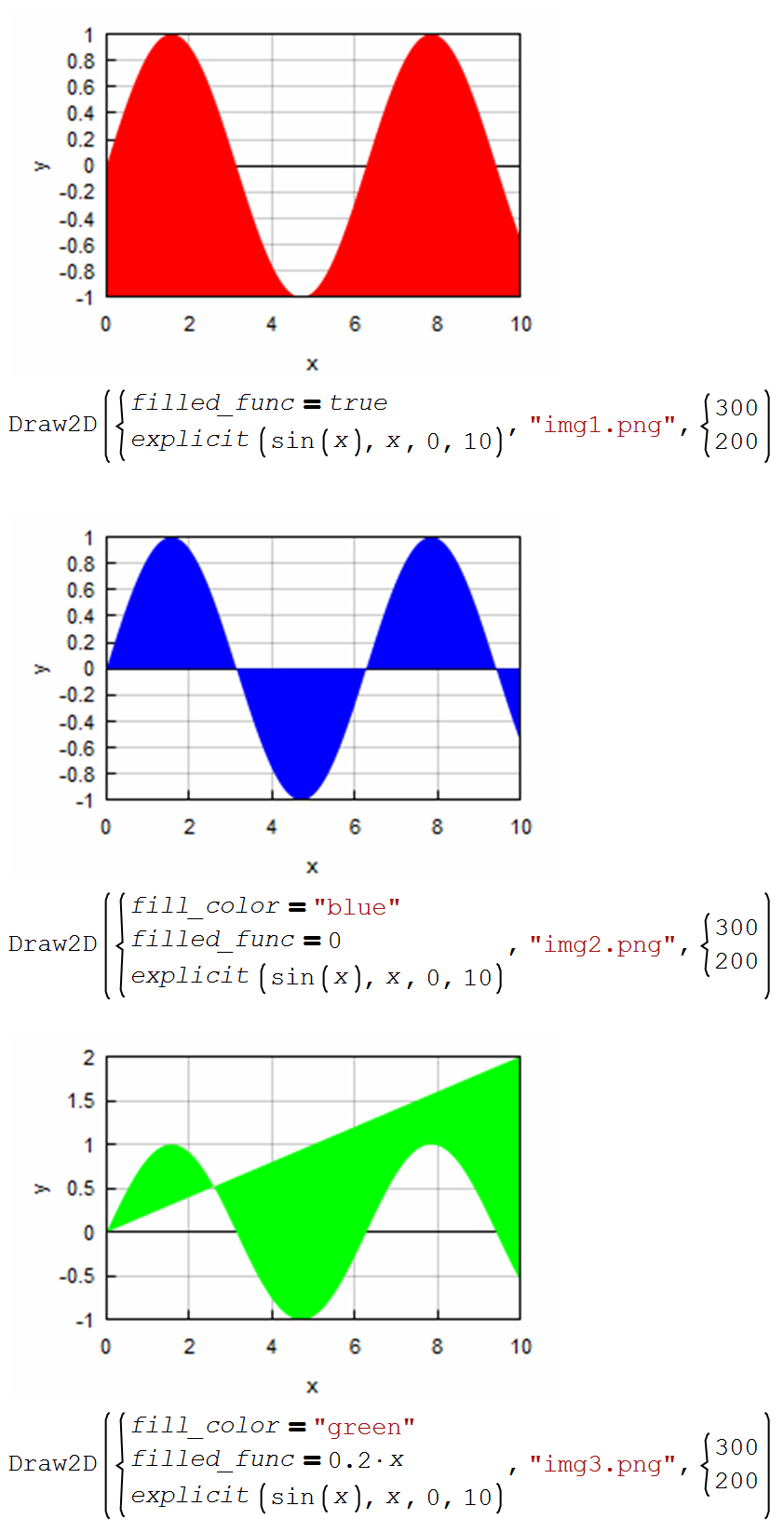

Thanks Martin! It works fine.

[albumimg]1732[/albumimg]

draw2d-filled.sm (29 KiB) downloaded 51 time(s).

Wrote

... In X-Y plot you could take a second function of the same variable in a row or in a list (just like with parametric functions, just with undefined dummy variable or you could say "to next", referring to the next trace, other options could be "to x", "to y", "to top" "close along border" etc.

I don't know how to do that.

Best regards.
Alvaro.

Wrote

Wrote

... In X-Y plot you could take a second function of the same variable in a row or in a list (just like with parametric functions, just with undefined dummy variable or you could say "to next", referring to the next trace, other options could be "to x", "to y", "to top" "close along border" etc.

I don't know how to do that.

Best regards.
Alvaro.

That was just a proposal as to what control options I'd find useful.

Wrote

... That was just a proposal as to what control options I'd find useful.

Thanks Martin. I found it very useful too, and I thought it was already a reality. Although I think my reading comprehension was not at its best level.
Best regards.
Alvaro.

A way for filling the region between curves, combining Oscar's box and Martin's fill_func.

[albumimg]1734[/albumimg]

XYFilling.sm (24 KiB) downloaded 64 time(s).

Best regards.
Alvaro.
