Function from plot

#1 Posted: 6/6/2023 8:19:33 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

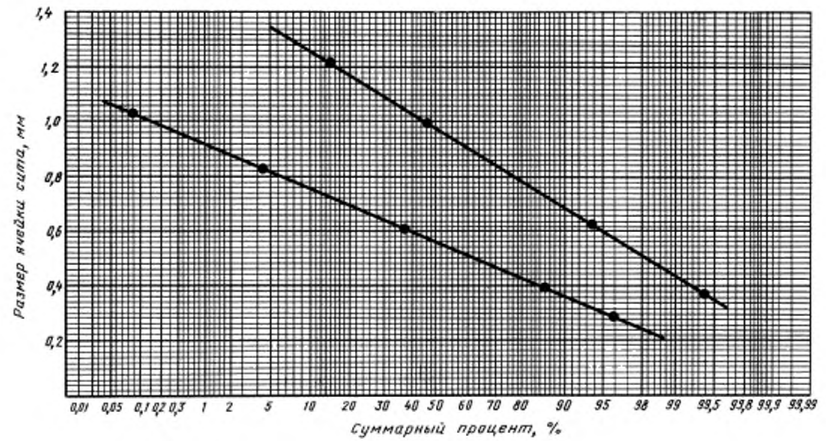

How can I get a function from this plot?

#2 Posted: 6/6/2023 8:59:59 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
How can I get a function from this plot ?

1. Probably from the expensive digitizer suggested by Richard [Mathsoft Collaboratory]
2. Piecewise from Tracer.
3. Try Mathsoft digitizer.
4. Smath difficult
At this point from the collected data set, fit a model function.
Cheers ... Jean.

1 users liked this post

Valery Ochkov 6/6/2023 10:24:00 AM

#3 Posted: 6/6/2023 10:05:20 AM

Brian Runagle

13 likes in 27 posts.

Group: User

Does this help?

Graphing.pdf (164 KiB) downloaded 67 time(s).

Brian

1 users liked this post

Valery Ochkov 6/6/2023 10:24:00 AM

#4 Posted: 6/6/2023 10:15:02 AM

⚜ Kenny Lemens, P.E. ᵂᴵ

74 likes in 164 posts.

Group: User

Greetings,

Wrote
How can I get a function from this plot? 🖼

That is a straight line on a semi-log graph; you can reference this handout: https://inside.mines.edu/~epoeter/_GW/LAB/EquationsOfStraightLinesOnDifferentTypesGraphPaper.pdf

Per this handout, your equation should be

y = b + m*log(x)

where:

m = difference in y over one log cycle of x
b = y value corresponding to x=1

May this be of Good Help;
⚜ Kenny Lemens, P.E. ᵂᴵ

"No matter where you go, there you are." -Buckaroo BanzaiHotkeys: https://en.smath.com/forum/resource.ashx?a=45771&b=2

1 users liked this post

Valery Ochkov 6/6/2023 10:24:00 AM

#5 Posted: 6/6/2023 12:44:34 PM

Alvaro Diaz Falconi

992 likes in 1675 posts.

Group: User

Wrote
How can I get a function from this plot?

Hi. You can try this post Approximation of a functional curve in a digital image or this other one: Embedding images into a plot

Best regards.
Alvaro.

2 users liked this post

Вячеслав Мезенцев 6/6/2023 2:16:00 PM, Valery Ochkov 6/6/2023 1:45:00 PM

#6 Posted: 6/6/2023 2:19:52 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
How can I get a function from this plot ?

Hello Valery,
some Smath digitizing utilities
Cheers, Jean.

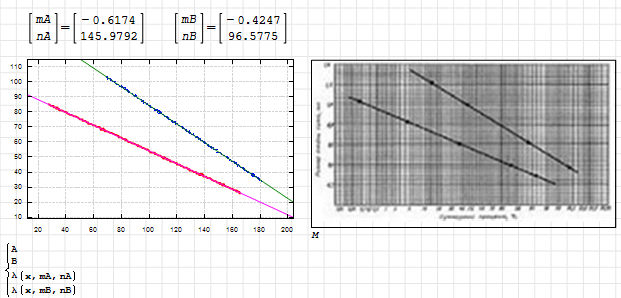

Digitize Tracer 15.sm (28 KiB) downloaded 49 time(s).
Digitize OVNI Copy.sm (69 KiB) downloaded 43 time(s).
Digitize Contour Isocurve Himmelblau Copy.sm (106 KiB) downloaded 44 time(s).
Digitize Curve.sm (295 KiB) downloaded 49 time(s).
Digitize Contour.sm (829 KiB) downloaded 45 time(s).
Digitize Clean_Strip_Smooth.sm (1 MiB) downloaded 47 time(s).

#7 Posted: 6/6/2023 3:29:30 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... this Himmelblau has resident Gray matrix.

Digitize Contour Isocurve Himmelblau Copy.sm (107 KiB) downloaded 47 time(s).

1 users liked this post

Valery Ochkov 6/7/2023 1:02:00 AM

#8 Posted: 6/6/2023 5:11:16 PM

Alvaro Diaz Falconi

992 likes in 1675 posts.

Group: User

Hi. Hope this helps.
