"Structural Beam Analysis" plugin error

#1 Posted: 1/16/2020 10:58:36 AM

0 likes in 4 posts.

Group: User

Hi everybody,
I'm trying to use the Structural Beam Analysis plugin, but I've got some problems.

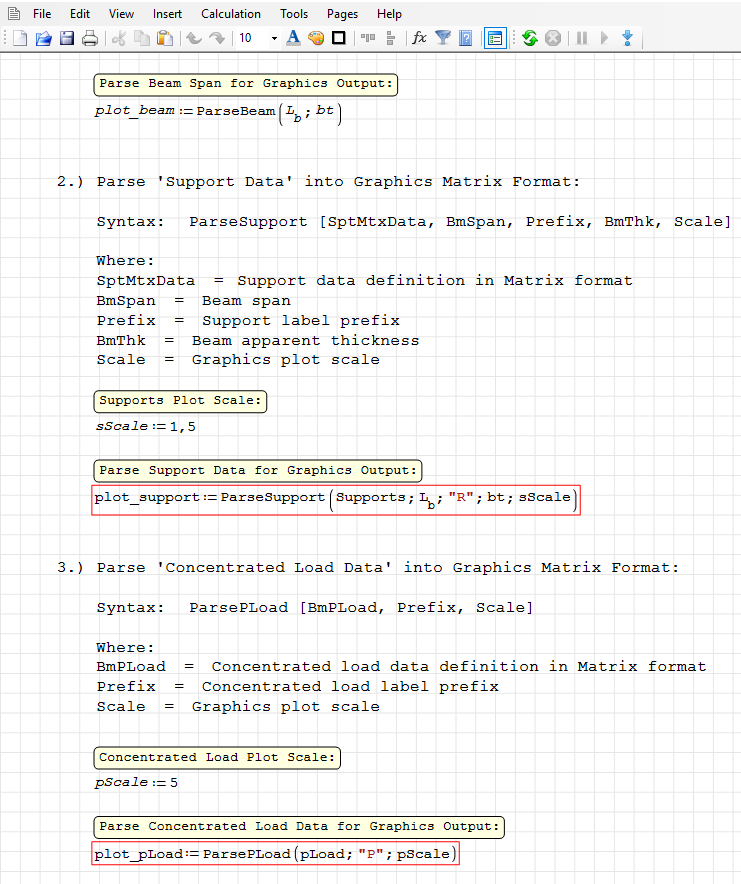

When I open the “Beam Analysis” example I've got the next problem.

The error says "Indice fuera de los limites de la matriz" (Index outside matrix boundaries)
Could somebody help me with that?
Thanks in advance

#2 Posted: 1/16/2020 3:38:24 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I'm trying to use the Structural Beam Analysis plugin, but I've got some problems.

Will be easier to doctor from the document, isn't it ?

#3 Posted: 1/17/2020 4:46:25 AM

e.artola

0 likes in 4 posts.

Group: User

Wrote

Wrote
I'm trying to use the Structural Beam Analysis plugin, but I've got some problems.

Will be easier to doctor from the document, isn't it ?

I've got the problema with the example that's why I didn't send the file before.
You can find it attached.
Thanks
Beam Analysis Input Guide.sm (86 KiB) downloaded 129 time(s).

#4 Posted: 1/17/2020 12:14:18 PM

Ruben Sidranski

17 likes in 463 posts.

Group: User

Do an AppVersion on the file

There has been a lot of work under the engine by the developers since this was issued. You'll need to update it and preferably, repost. I don't do a lot of beam calcs, so I have not touched this in a while.

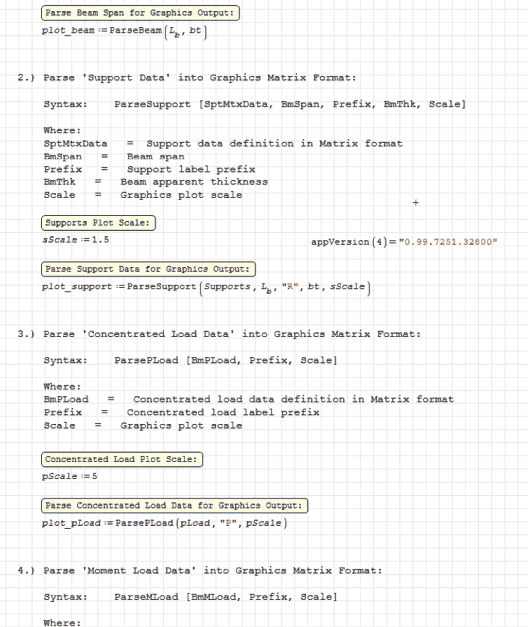

NOTE: Opened fine in 7251

#5 Posted: 1/17/2020 1:56:19 PM

sergio

115 likes in 329 posts.

Group: User

I have the same problems as Eneko, with 7251 versions of SM
sergio

#6 Posted: 1/17/2020 3:56:49 PM

e.artola

0 likes in 4 posts.

Group: User

I've tryed in different ways to fix it but I continue with the same error.

#7 Posted: 1/17/2020 11:57:33 PM

CBG

77 likes in 312 posts.

Group: User

works perfectly on SS7251

Best Regards

Carlos

#8 Posted: 1/18/2020 12:01:12 AM

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Wrote
Do an AppVersion on the file
There has been a lot of work under the engine by the developers since this was issued.You'll need to update it and preferably, repost.I don't do a lot of beam calcs, so I have not touched this in a while.
NOTE: Opened fine in 7251

The original file showed Red while opening, but finally opened successfully in SS 7251.
Then saved as with a new name, which opens later without any such hassle.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#9 Posted: 1/21/2020 8:12:13 AM

e.artola

0 likes in 4 posts.

Group: User

I continue with the same error.
Could somebody show me how to solve it please?
Thank you in advance

#10 Posted: 1/21/2020 11:48:48 AM

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Wrote
The original file showed Red while opening, but finally opened successfully in SS 7251.
Then saved as with a new name, which opens later without any such hassle.

The renamed file is attached, including the PDF. I did not do any changes.
Hope you will be able to open it. Also update relevant plug-ins.
Cheers!.

Beam Analysis Input Guide_TEST.sm (387 KiB) downloaded 107 time(s).
Beam Analysis Input Guide_TEST.pdf (486 KiB) downloaded 116 time(s).

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#11 Posted: 1/21/2020 12:09:10 PM

sergio

115 likes in 329 posts.

Group: User

I confirm the problem highlighted by Eneko also on my pc with win7 Pro and SM SM "0.99.7251.32800".
The only dependency reported in the guide is the plugin "Structural Beam Analysis
Utility Functions by Redem Legaspi Jr." that is set up and active.

sergio

#12 Posted: 1/21/2020 12:13:54 PM

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Wrote
I confirm the problem highlighted by Eneko also on my pc with win7 Pro and SM SM "0.99.7251.32800".

Mine is Win 10 Home Edition. SS version same as yours.
Cheers!

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#13 Posted: 1/21/2020 12:43:03 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Page Beam Analysis Utility Functions exists but I see this plugin for the first time. If anybody find sources I can update them to work state.

Quote
Analysis of Beam with any number of supports and with any type of loadings.

The worksheet requires that the associated Plugin (Structural Beam Analysis Utililty Functions by Redem Legaspi Jr.) be downloaded and enabled from SMath Studio Extension Manager tool.

The worksheet does the following:
1.) Plots Beam Diagram, Shear Diagram, Moment Diagram, Deflection
2.) Calculates Support Reactions
3.) Calculates Shear, Moment, and Deflection at any given point.

Refer to 'Beam Analysis Input Guide.sm' on how to use the plugin.

redemlegaspi1968@gmail.com

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

sergio 1/21/2020 12:55:00 PM, NDTM Amarasekera 1/21/2020 2:53:00 PM

#14 Posted: 1/21/2020 1:21:13 PM

Zigor Marroquín Martínez

0 likes in 7 posts.

Group: User

Same problem as Eneko and PompelmoTell :___(

Thanks fro helping ndtma and uni!

#15 Posted: 1/27/2020 7:52:07 AM

Zigor Marroquín Martínez

0 likes in 7 posts.

Group: User

Wrote
Page Beam Analysis Utility Functions exists but I see this plugin for the first time. If anybody find sources I can update them to work state.

Hi uni and thank you very much for offering your help.. I'm going to try to find the sources you asked for, mailing Redem Legaspi. Any specific file or extension?

Hugs!

Zigor

#16 Posted: 1/27/2020 8:49:15 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Wrote
I'm going to try to find the sources you asked for, mailing Redem Legaspi. Any specific file or extension?

Redem Legaspi can ask Anrey how to upload sources to svn. After that we'll can maintain his project without author.

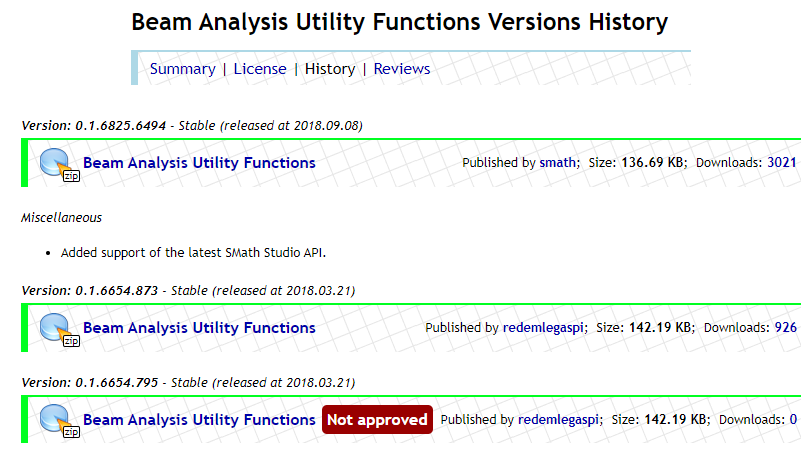

As far as I can see, the last update was made by Andrey. Maybe he has sources.

Russia ☭ forever, Viacheslav N. Mezentsev

#17 Posted: 1/27/2020 11:14:01 AM

Zigor Marroquín Martínez

0 likes in 7 posts.

Group: User

You're right, uni..

I've already contacted Redem and he suggested me also writing Andrey; Redem can't recover right now plugin sources.

I've mailed Andrey. I'll keep you informed.

Thanks a lot for helping!

Zigor

#18 Posted: 1/29/2020 12:12:55 PM

eswte

0 likes in 8 posts.

Group: User

Hi I have the same problem with the Beam Analysis, have you got some answer?

#19 Posted: 2/5/2020 4:11:36 AM

Andrey Ivashov

2270 likes in 3734 posts.

Group: Super Administrator

Hello.

Sources of Beam Analysis Utility Functions stored on SMath server but author of a plug-in asked not to share them.
Several days ago I've got permissions to fix an issue.

Wrote
Could somebody help me with that?

Plug-in functionality restored now. Tested ok with all available sample worksheets.
New version of a plug-in available using Extensions Manager.

Best regards.

3 users liked this post

Вячеслав Мезенцев 2/5/2020 5:17:00 AM, sergio 2/5/2020 5:33:00 AM, Martin_B 2/5/2020 7:10:00 AM

#20 Posted: 2/5/2020 6:35:03 AM

Zigor Marroquín Martínez

0 likes in 7 posts.

Group: User

Dear Andrey,

I've just download the plugin and check the SMath sheet.

I've only performed few tests, but it's working perfectly.

Thank you so much for your help and effort. Really.

Best regards!

Zigor
