SMath

124 likes in 298 posts.

Group: Moderator

Yes, it's something that I found accidentally. The statement ft(F(s)) appear as a function, but it's a matrix!

Oscar

#4 Posted: 5/30/2012 3:18:43 PM

8 likes in 172 posts.

Group: User

Hello,

I tried to open it using the latest SMath.
I get an error message in the last FOR loop: "Function not defined"

Thanks,
Basile

#5 Posted: 5/30/2012 3:53:17 PM

Andrey Ivashov

2271 likes in 3734 posts.

Group: Super Administrator

[USERLINK]Basile[/USERLINK], you need to define a function to work with as shown in the first message.

Wrote

Regards.

#6 Posted: 5/31/2012 9:25:59 PM

8 likes in 172 posts.

Group: User

Thank you Andrey,

Basile

#7 Posted: 5/31/2012 9:28:48 PM

8 likes in 172 posts.

Group: User

Oscar,

Which Numerical Inverse Laplace Transform do you use?
Any reference?

Thank you,
Basile

#8 Posted: 6/1/2012 9:24:33 AM

124 likes in 298 posts.

Group: Moderator

Hi Basile,
The method is based on work of J. Valsa and L. Brancik: Approximate Formulae for Numerical Inversion of Laplace Transforms, Int. Journal of Numerical Modelling: Electronic Networks, Devices and Fields, Vol. 11, (1998), pp. 153-166

Regards,

Oscar

1 users liked this post

Davide Carpi 6/1/2012 9:32:00 AM

#9 Posted: 6/1/2012 5:29:58 PM

8 likes in 172 posts.

Group: User

Oscar,

Thank you,

Basile

#10 Posted: 6/4/2012 7:47:33 PM

124 likes in 298 posts.

Group: Moderator

Bode Diagram Revisited.
This is a function for graphing the Bode plot of a system. Please plot the magnitude and phase on a diferent graph each one, deactivate "grid" and "axis" for a better visualization of logarithmic grid.

Download it here: MyBode3.sm (30 KiB) downloaded 61 time(s).

#11 Posted: 6/5/2012 3:02:37 PM

124 likes in 298 posts.

Group: Moderator

Root Locus Snippet

This is a snippet for plotting Root Locus of a sistem. The input is the denominator of coefficients of transfer function:

Download it here

Oscar

#12 Posted: 8/25/2017 1:22:41 PM

Leandro de Oliveira

0 likes in 1 posts.

Group: User

The file seems to be locked, I can't put a equation.

#13 Posted: 8/25/2017 5:02:19 PM

983 likes in 6866 posts.

Group: User

.. here is the Bode Plot.

Bode plot.sm (27 KiB) downloaded 213 time(s).

2 users liked this post

Viktor 11/15/2017 7:30:00 PM, Oscar Campo 8/27/2017 3:21:00 AM

#14 Posted: 8/25/2017 6:44:35 PM

Davide Carpi

1417 likes in 2873 posts.

Group: Moderator

Wrote
The file seems to be locked, I can't put a equation.

Open the file in SMath Studio and then go to File > Properties > File Attributes and uncheck Read-only. This attribute is required when the worksheet is designed to be a snippet.

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

#15 Posted: 8/26/2017 9:01:49 AM

983 likes in 6866 posts.

Group: User

Wrote

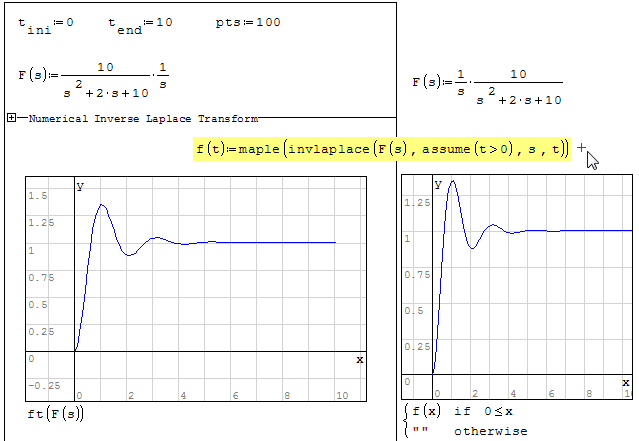

Hi, this is a snippet for numerical inverse Laplace transform. You can find time response of a system expressed in F(s) form. enjoy

=================
This 5 years old document does not work 6179.
Here is the Maple companion.

#16 Posted: 8/27/2017 10:46:55 AM

124 likes in 298 posts.

Group: Moderator

Wrote

=================
This 5 years old document does not work 6179.

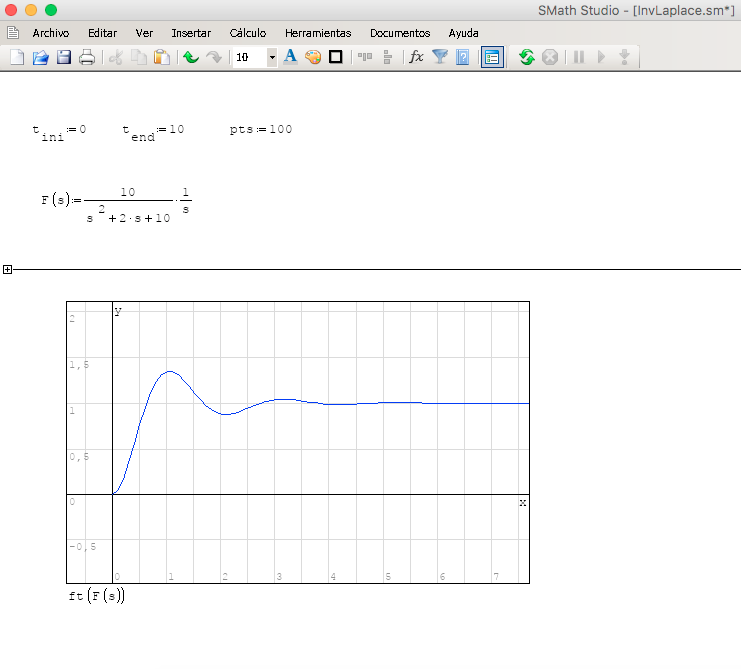

Only a very little detail to fix this 5 years old document: declare F(s) and change the last line on snippet:

ft( "F(s" ) = augment(t,ft)

for

ft() = augment(t,ft)

You can download the updated version from here

1 users liked this post

Davide Carpi 8/28/2017 1:28:00 PM

#17 Posted: 8/28/2017 11:01:53 AM

983 likes in 6866 posts.

Group: User

Wrote
You can download the updated version from here

... that's only several pages long of HTML code.
No work sheet. Best is to upload WS in the forum.
For "Laplace stuff", better use maple(,) as show above.

Cheers, Jean

#18 Posted: 8/28/2017 11:32:53 AM

124 likes in 298 posts.

Group: Moderator

Wrote

... that's only several pages long of HTML code.
No work sheet. Best is to upload WS in the forum.

Use "save as"

Quote

For "Laplace stuff", better use maple(,) as show above.

Yes, and also it’s possible use f(t)=Maxima(ilt(F(s),s,t)) but it’s interesting show how you can implement inverse Laplace of a function in SMath.
P.D. The symbolic form of f(t) obtained from ilt() it’s more “elegant” than maple version

1 users liked this post

Davide Carpi 8/28/2017 1:28:00 PM
