Conditionally Formatted Labels

#81 Posted: 1/17/2023 9:19:38 AM

0 likes in 8 posts.

Group: User

Here it is.
losa-forum.sm (862 KiB) downloaded 61 time(s).

Sorry Jean but i don't understand what i'm supposed to see. I also get "data - not defined".

#82 Posted: 1/17/2023 10:18:15 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Sorry Jean but I don't understand what I'm supposed to see. I also get "data - not defined".

data not defined probably indicates some plugins not installed.
Maybe other problems wrt your version.

#83 Posted: 1/17/2023 10:55:42 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Here it is.

Document does not open ... incorrect format

#84 Posted: 1/17/2023 11:15:28 AM

German

0 likes in 8 posts.

Group: User

SMath Studio Desktop 64-bit
Version: 1.0(build: 8348)
Date: 9/11/2022

ConditionallyFormattedLabel: 1.0.8138.35454

#85 Posted: 1/17/2023 11:20:05 AM

Davide Carpi

1417 likes in 2873 posts.

Group: Moderator

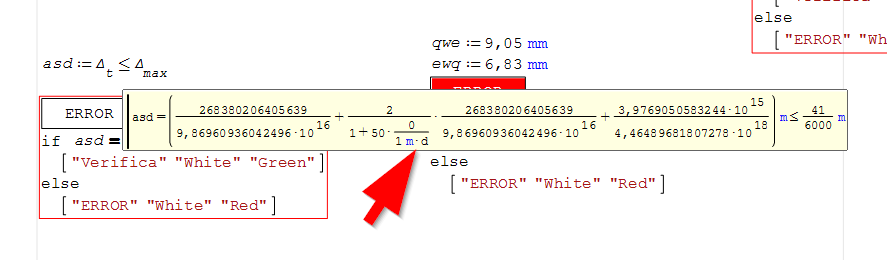

If you hover over the asd definition you can see that there is an unsolved "d" dependancy that triggers the error.

2023-01-17 15_10_16-SMath Solver - [losa-forum.sm_].png

The same happens if you try to force a numerical evaluation using eval()

2023-01-17 15_23_37-SMath Solver - [losa-forum.sm_].png

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

#86 Posted: 1/17/2023 12:05:21 PM

German

0 likes in 8 posts.

Group: User

Wrote
If you hover over the asd definition you can see that there is an unsolved "d" dependancy that triggers the error.

The same happens if you try to force a numerical evaluation using eval()

That is it!

As allways thanks!!

But still don't understand why Jean files fails.

#87 Posted: 1/17/2023 12:12:05 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
SMath Studio Desktop 64-bit
Version: 1.0(build: 8348)
Date: 9/11/2022

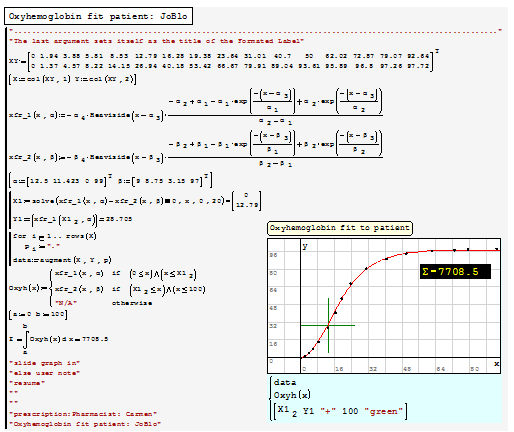

Slide left the Formatted Label

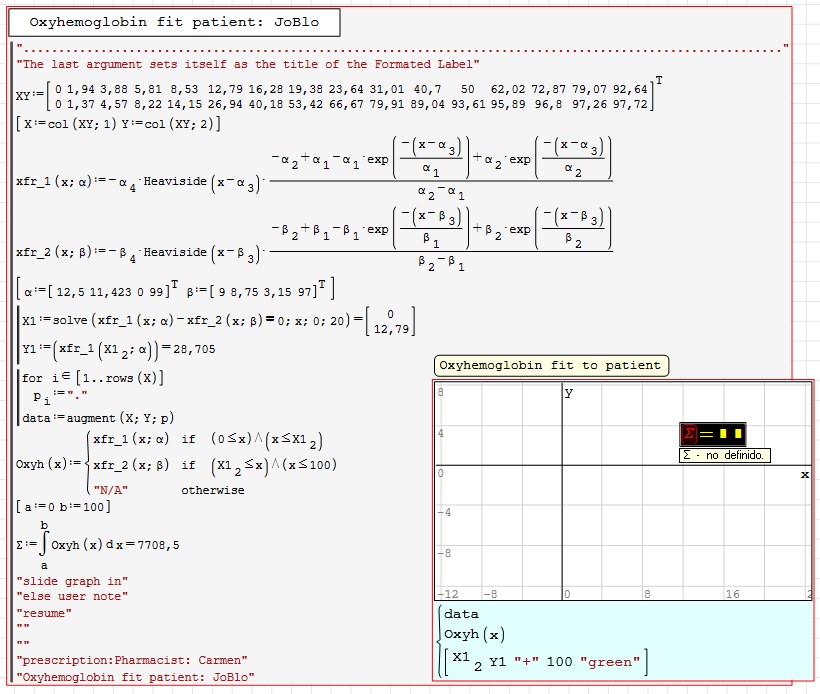

Side right the graph, remove the Σ no definido
You should see the plot.

#88 Posted: 1/17/2023 12:15:52 PM

Davide Carpi

1417 likes in 2873 posts.

Group: Moderator

Wrote
That is it!

As allways thanks!!

You're welcome!

Wrote
But still don't understand why Jean files fails.

~~There is an excel data import at the begin of the file, is not related to the issue however so it doesn't matter.~~ nevermind I was looking at your file.

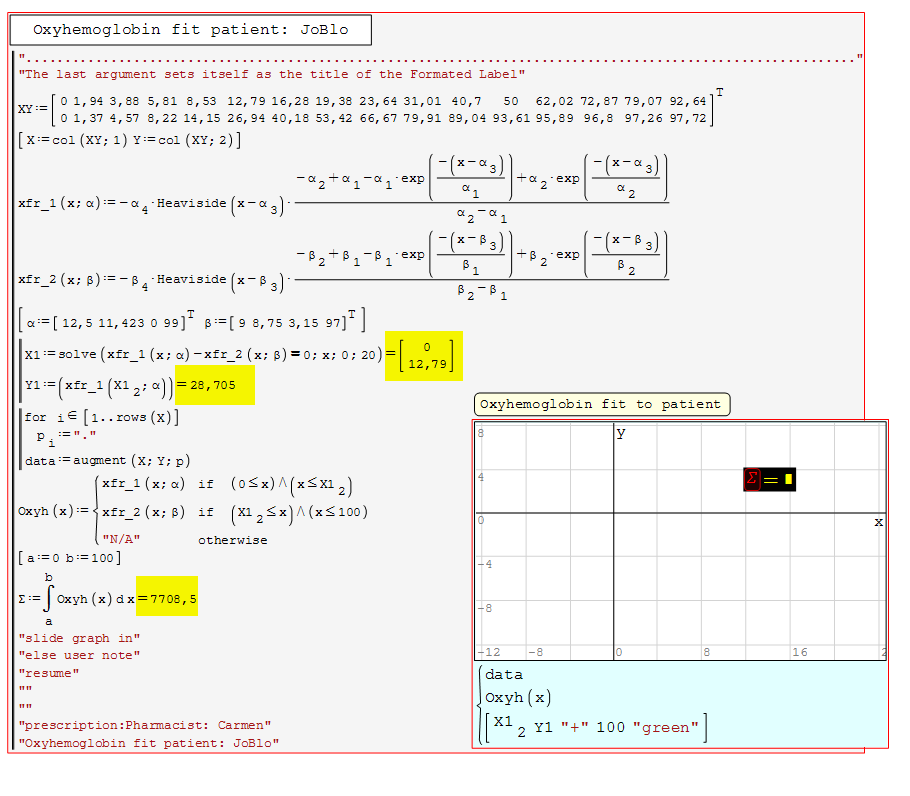

If you remove the 3 inline evaluations it will work.

2023-01-17 16_28_05-SMath Solver - [Image Formated LABEL [Oxyhemoglobin] FORUM.sm].png

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

#89 Posted: 1/17/2023 12:39:57 PM

German

0 likes in 8 posts.

Group: User

Wrote

~~There is an excel data import at the begin of the file, is not related to the issue however so it doesn't matter.~~ nevermind I was looking at your file.

My file can be an example of things NOT to do.

Wrote

If you remove the 3 inline evaluations it will work.

#90 Posted: 10/14/2023 11:08:58 PM

Rogalski

0 likes in 7 posts.

Group: User

Hi,
Can we manage the units that are displayed?
I have a load in kN/m2 and the result appears as kg/(m*s2).
The idea is to present only positive values (with the appropriate unit).

kind regards

Conditionally Formatted Labels_unity.sm (5 KiB) downloaded 66 time(s).

#91 Posted: 10/14/2023 11:52:58 PM

Davide Carpi

1417 likes in 2873 posts.

Group: Moderator

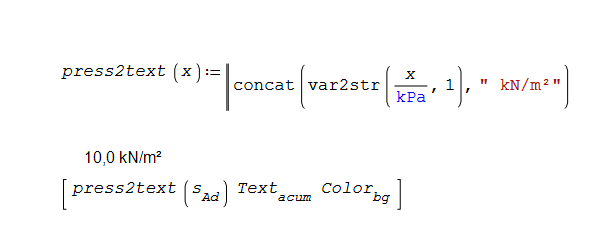

The easier way might be something like this

2023-10-14 18_53_23-SMath Solver - [Conditionally Formatted Labels_unity.sm_].png

press2text(x):line(concat(var2str(x/'kPa,1),"\0020\kN\002F\m\00B2\",1,1)

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

1 users liked this post

Oscar Campo 10/15/2023 12:41:00 AM

#92 Posted: 10/15/2023 12:08:06 AM

Rogalski

0 likes in 7 posts.

Group: User

Thank you very much.
This is exactly what I needed.

#93 Posted: 10/15/2023 11:51:23 PM

Rogalski

0 likes in 7 posts.

Group: User

Hi,
I'm looking for a way to represent the letter D as a subscript. Unfortunately, Unicode doesn't seem to provide this option...

Is there any possibility to parameterize individual characters that will be presented?

#94 Posted: 10/16/2023 3:06:16 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I'm looking for a way to represent the letter D as a subscript

You can subscribe whatever.
mysystem dot HelloGrandMa

#95 Posted: 10/17/2023 1:32:30 AM

Rogalski

0 likes in 7 posts.

Group: User

Wrote

Wrote
I'm looking for a way to represent the letter D as a subscript

You can subscribe whatever.
mysystem dot HelloGrandMa

Hi,

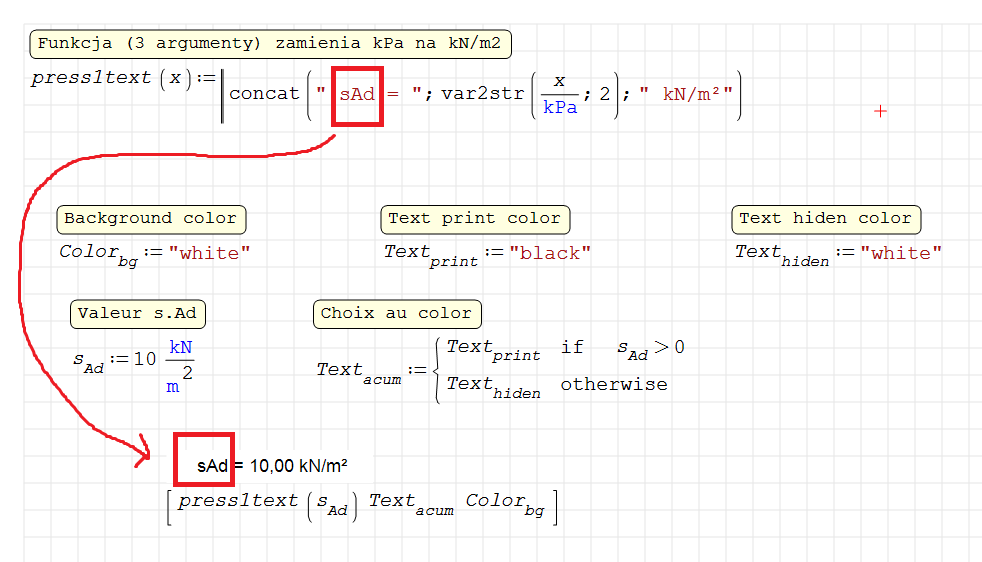

thanks for the information, but I'm not sure if I expressed myself correctly. I mean the subscripts in the "phrases" that I marked in the drawing.

Davide sent the function shown above in which I need to use subscripts.

#96 Posted: 10/17/2023 2:13:46 AM

Oscar Campo

124 likes in 298 posts.

Group: Moderator

Davide used superscript unicode character for write: "kN\002F\m\00B2\" wich renders as "kN/m²" so, you can use unicode characters...but not all characters have subscript version.

Please check here: https://www.compart.com/en/unicode/search?q=subscript#characters

Oscar

#97 Posted: 10/17/2023 1:30:37 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Hi Karol. This could be a workaround, using the SMath Plot region.

label.sm (6 KiB) downloaded 60 time(s).

Best regards.
Alvaro.

1 users liked this post

Oscar Campo 10/17/2023 4:52:00 PM

#98 Posted: 10/17/2023 6:15:56 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

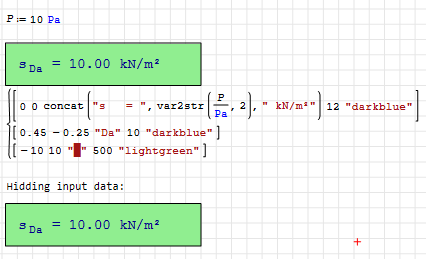

Subscripts in native Solver 30405.
Collect as many the project needs,
call the wanted by indexing.

Maths Subscript.sm (10 KiB) downloaded 59 time(s).

#99 Posted: 10/17/2023 11:23:29 PM

Rogalski

0 likes in 7 posts.

Group: User

Wrote
Hi Karol. This could be a workaround, using the SMath Plot region.

label.sm (6 KiB) downloaded 60 time(s).

Best regards.
Alvaro.

Wow great Alvaro. Thank you very much.
I'm impressed.

#100 Posted: 10/17/2023 11:26:39 PM

Rogalski

0 likes in 7 posts.

Group: User

Wrote
Subscripts in native Solver 30405.
Collect as many the project needs,
call the wanted by indexing.

Maths Subscript.sm (10 KiB) downloaded 59 time(s).

Jean Giraud,
Thank you too.
But I have to put in some effort to understand what you sent.
Kind regards
